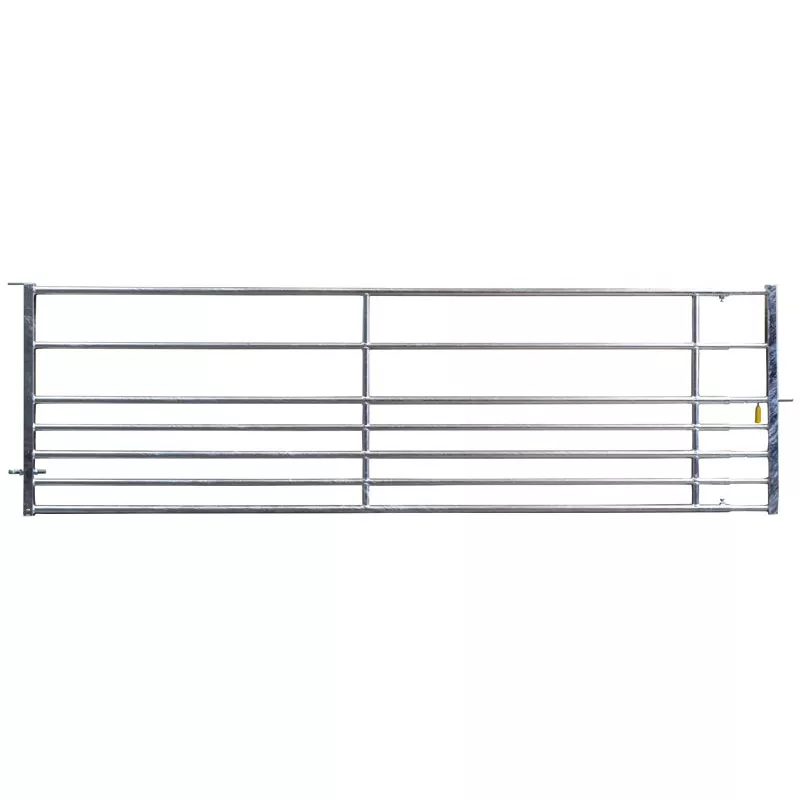

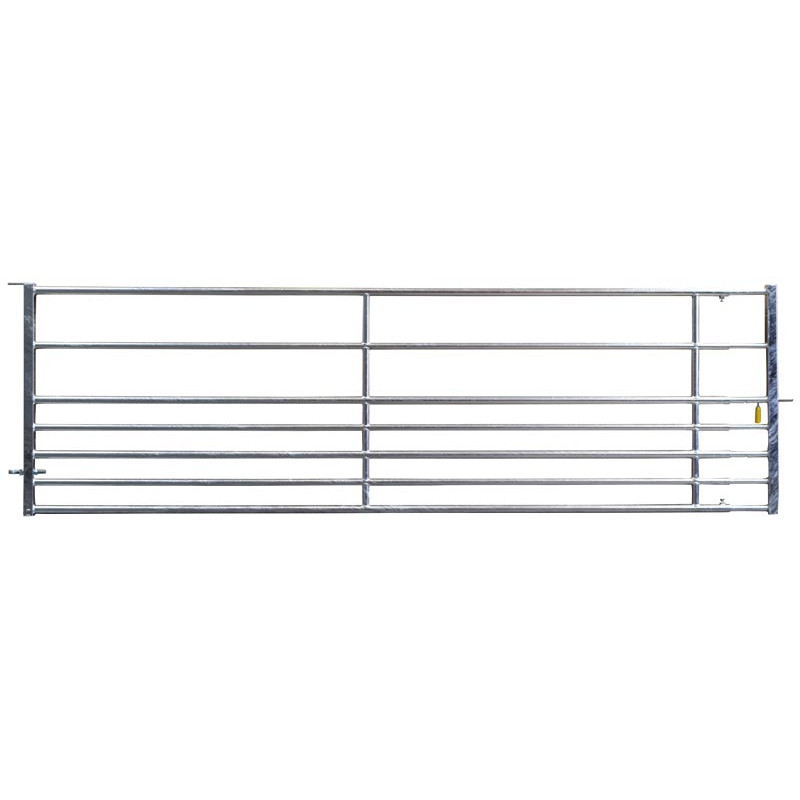

Sheep pasture fence extendable 7 bars with 1 latch 4/5 m
Bars are tightened at the bottom to contain small animals: calves, sheep, goats, etc.
Option: can receive an additional “Easylock” latch on the 3rd rail Ø42.4 mm, pre-cut to receive it.
Features:
- Hot-dip galvanised after manufacture,
- 50 mm square front and rear upright, 2 mm thick,
Rear part:
- 4 transverse bars Ø42.4 mm locked on 2 bars using crush bolts and nuts,
- 3 transverse bars Ø35 mm,
- Spacers Ø35 mm notched with half-round groove,
- Quick fastening and adjustment using a plate at the top and a threaded eye bolt, threaded in a sheath, at the bottom.
Front part:
- 4 transverse bars Ø33.7 mm
- 3 transverse bars Ø26.9 mm
Available in versions:
- panel with 2 fixing plates to be bolted at a distance of 94.8 cm,
- 1 “Easylock” automatic latch Ø20 mm, guided in a rail (can receive an optional second latch, to be inserted in the 3rd rail from the bottom).
Supplied as standard with 1 “Easylock” latch to be mounted in one of the bars on the front of the hurdle, which has been pre-cut to receive it.
- Diameter
- 42.4/34 mm
- Height
- 1.15 m
- Length
- 4 to 5 m
- Sales unit
- Unit
- Packaging
- Palette
- Material
- galvanised steel
- Number of rails
- 7
- Number of locks
- 1
- Net weight
- 77 kg
- Number of spacers
- 18
