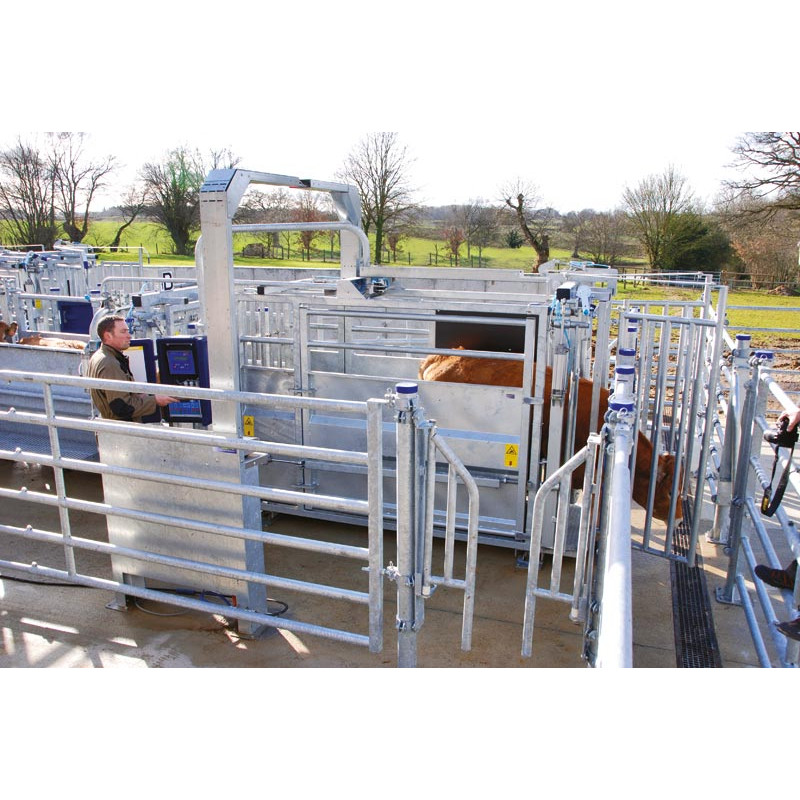

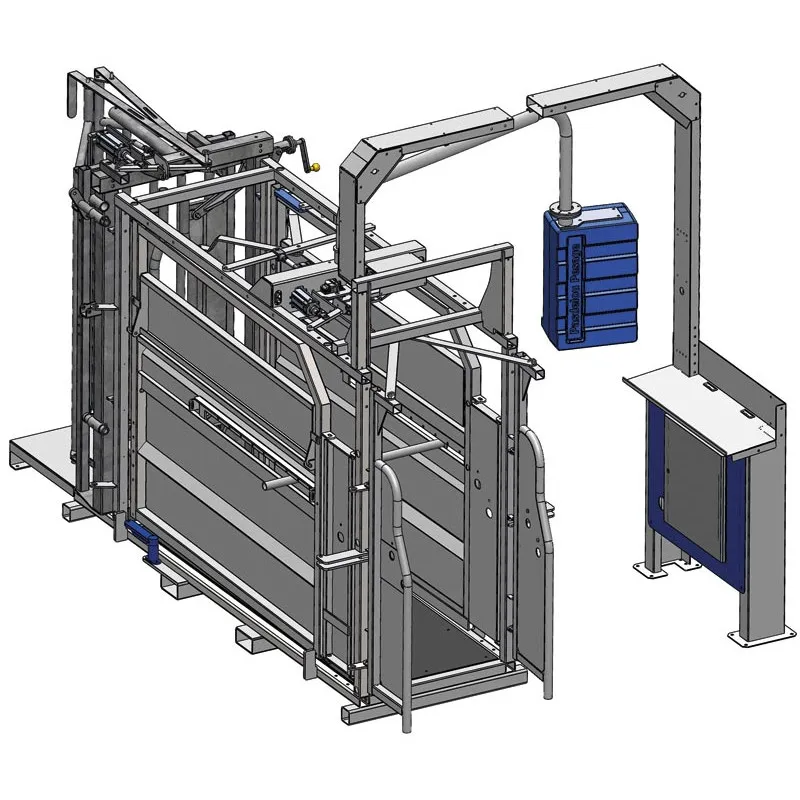

LVAP crush - Sheeted panels - Adjustable sides - Non-opening sheeted side panels

- Galvanised steel crush equipped with a ⧄ 60 mm reinforced frame,
- Double rear pneumatic insemination gate. Pneumatic control,
- Movable sheeted end panels at the rear to go with the adjustable sides,
- Movable rubber end panels at the front to go with the adjustable sides,
- Factory-fitted non-slip mat on the bottom to prevent slipping and to limit noise,
- Slots under the crush so it can be moved during installation,

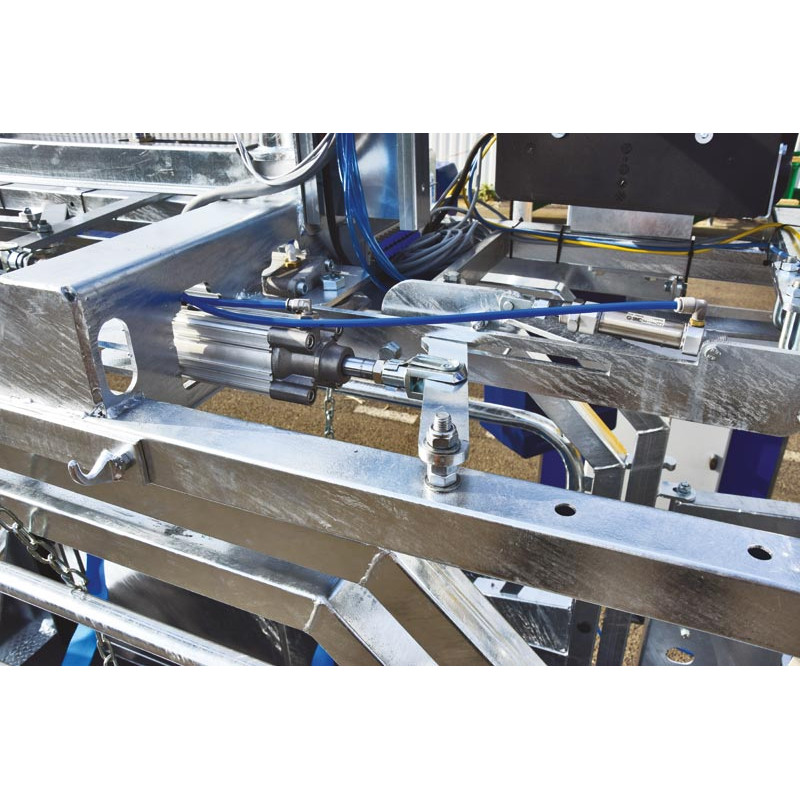

- Reinforced rotating connection rods welded to a mechanical tube with grease nipples,

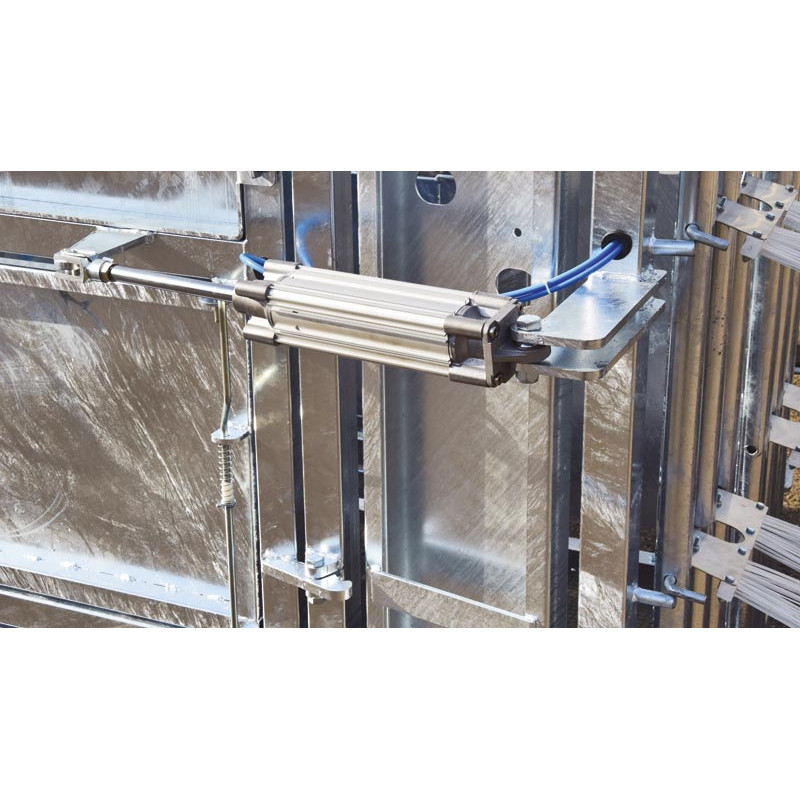

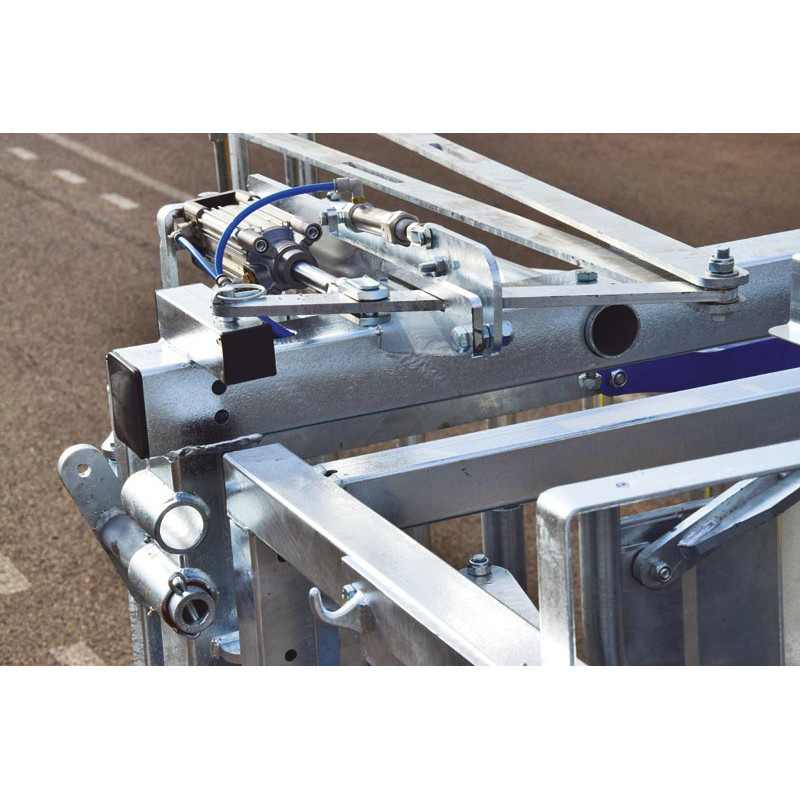

- Pneumatic cylinders operating on a pressure of 5 bar,
The diameter of the cylinders depends on the force to be applied to open each component,
Each of the components that are operated by the cylinders are equipped with a mechanical safety device with a hard stop to limit cylinder stress and breakage, especially when pushed by the animals.
- Factory-fitted cattle crush exit threshold,
- Factory-fitted PCCM PC pneumatic gate,

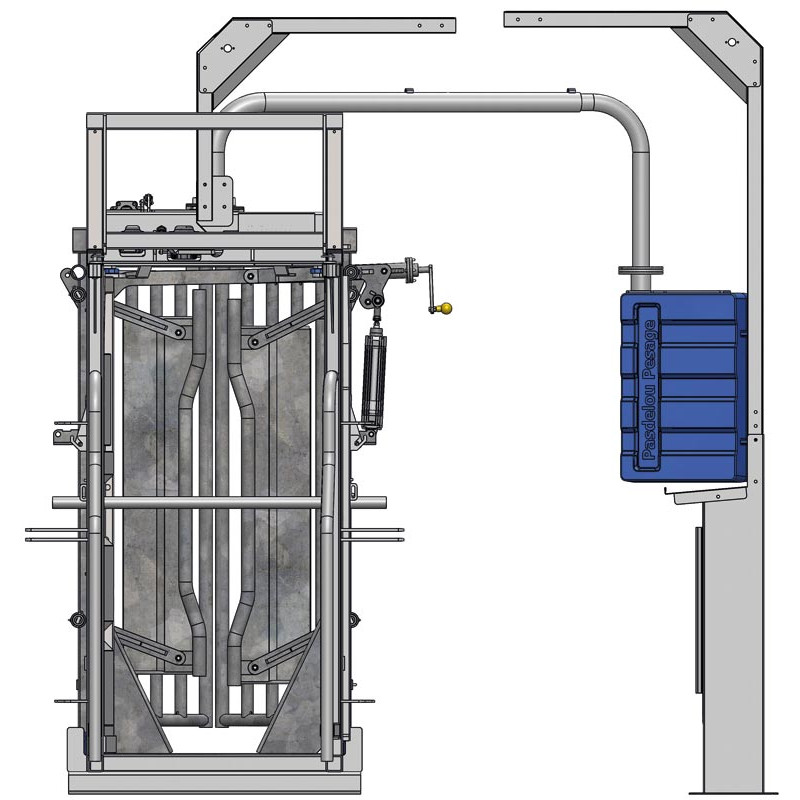

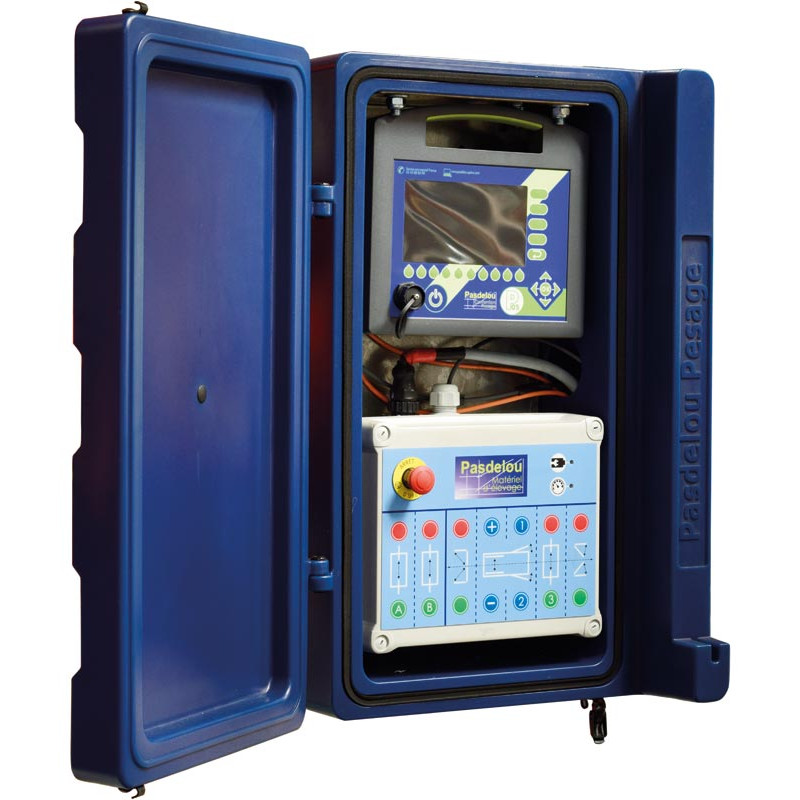

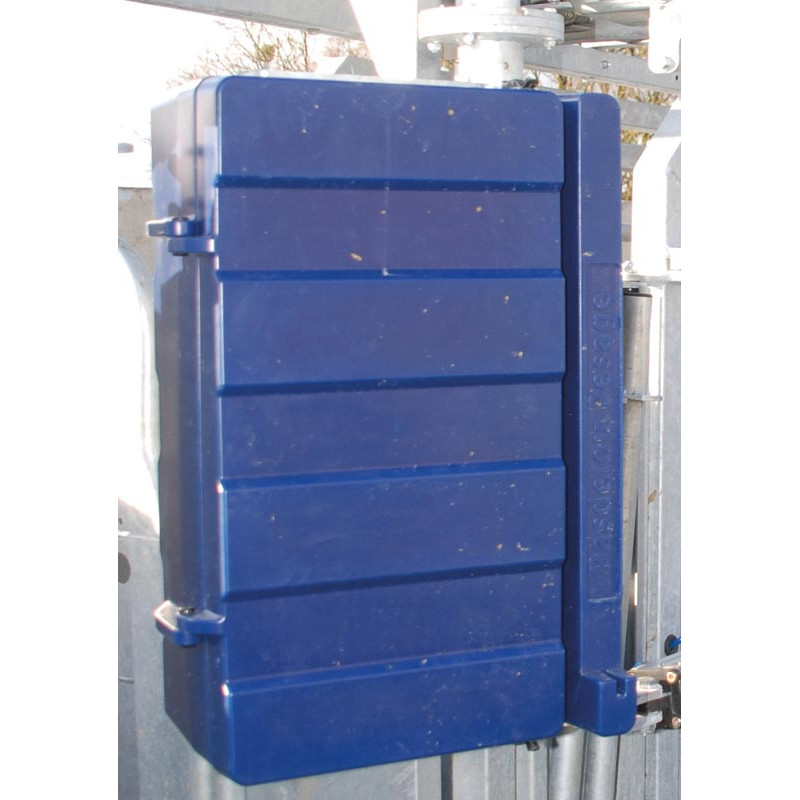

-& A waterproof polyethylene cabinet with padlock ring and latch attached to a removable and reversible arm,
Designed to house the weigh scale indicator (P01 or P05 option) and the control unit for the pneumatic cylinders,
- Control panel on support frame.

Technical, electronic and pneumatic parts installed with this crush:

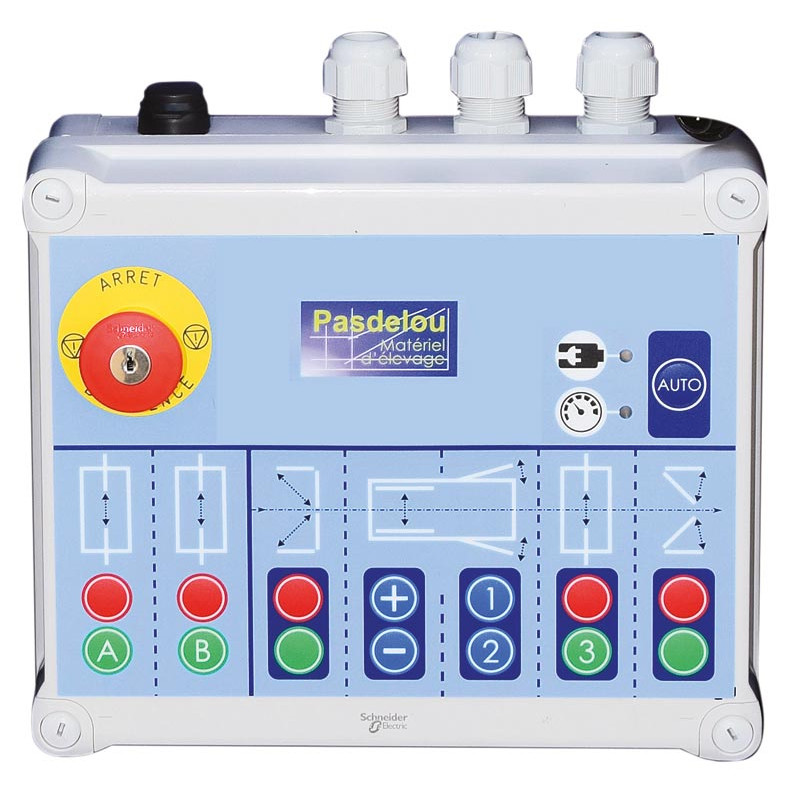

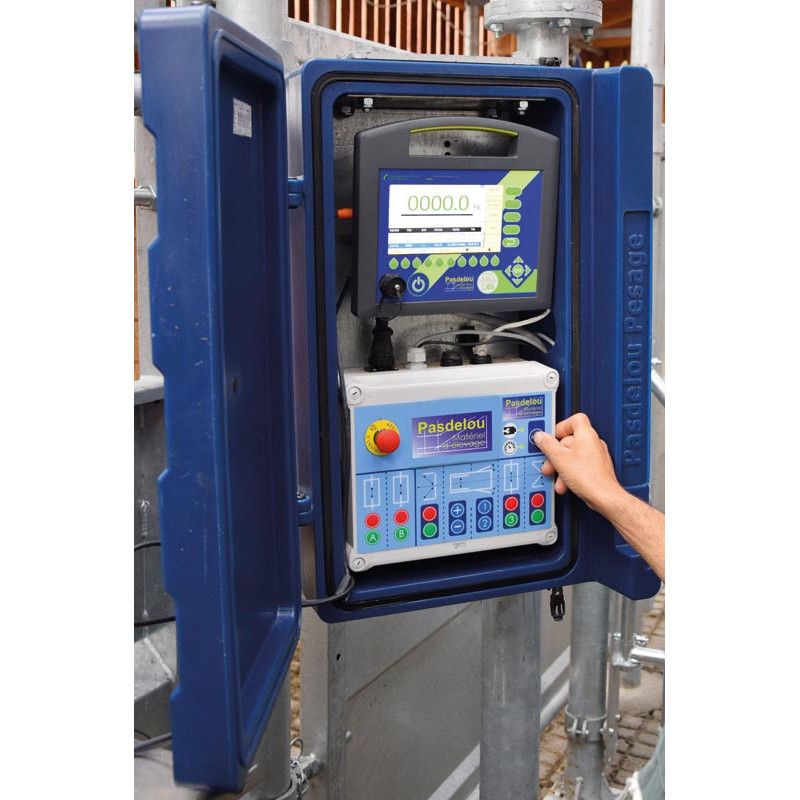

A control box equipped with:
- a keyboard,
- an electric and pneumatic emergency stop,
- 2 pneumatic and electrical power-on LED indicators,
Enables control of the crush with its gates plus 2 additional stop gates in a fixed crush.

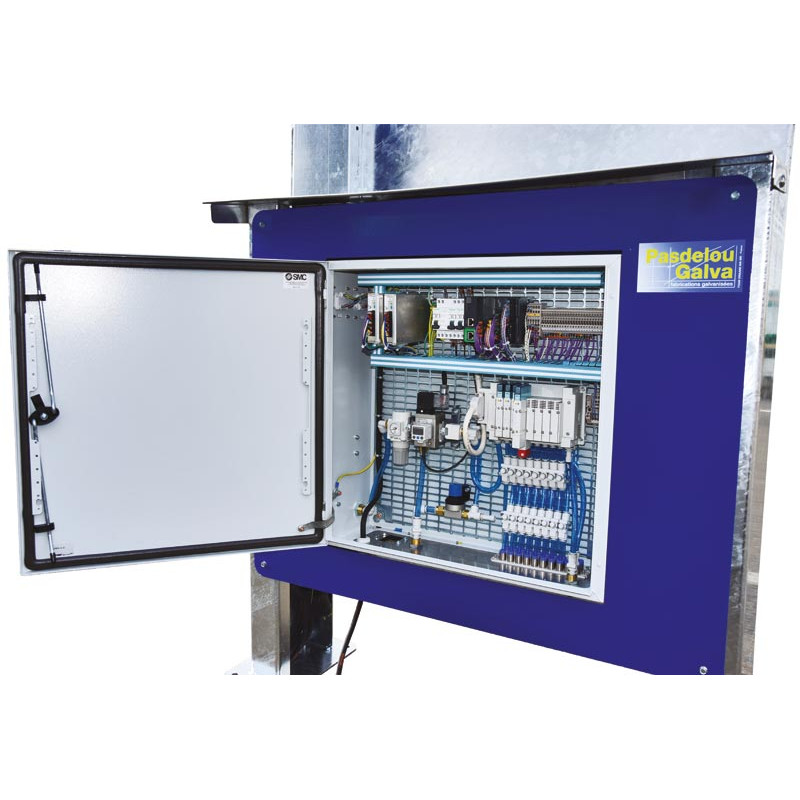

A watertight, electrical and pneumatic lockable cabinet equipped with:
- Solenoid valves operating at 12 V,
- 2 x 220 V sockets for connecting power tools,
- 1 x 220 V to 12 V transformer,
- 1 pneumatic pressure regulator with safety valves,
- flow regulators enabling the flow rate, and therefore the operating speed of each pneumatic cylinder, to be adjusted position by position,
- 1 document holder shelf.

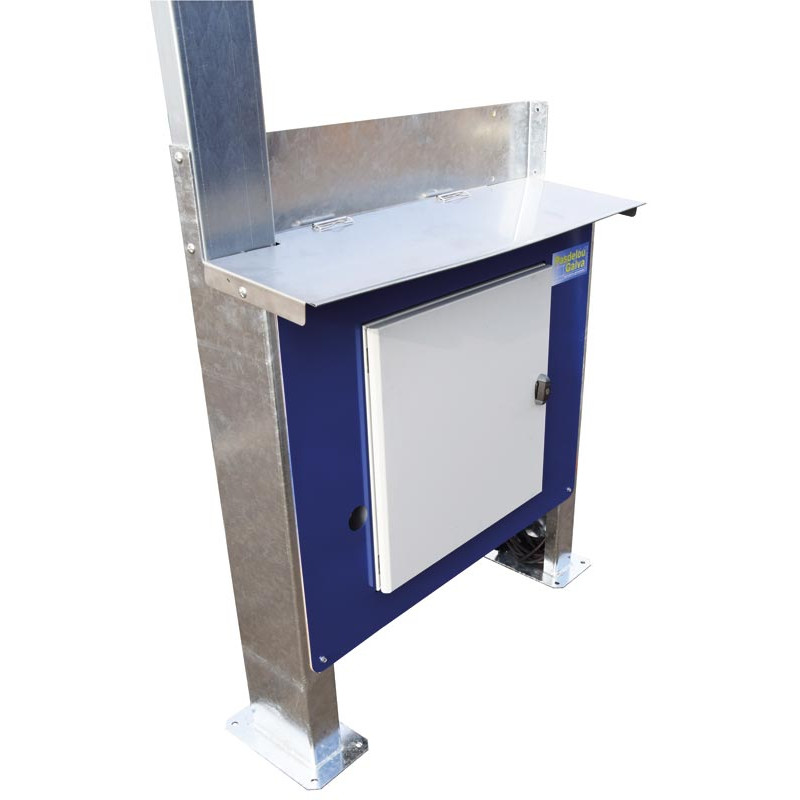

This cabinet is mounted on a galvanised frame, which must be fixed to the ground and then connected to the crush by a fixed extension arm to route the cables.

The electrical connection system is in accordance with the standards in force for machine tools.

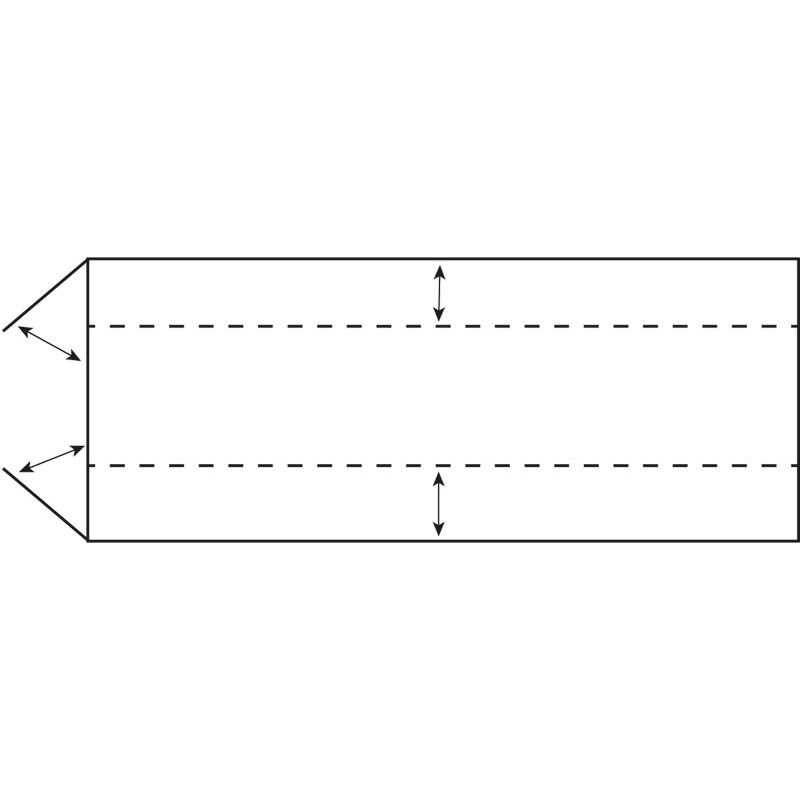

- Non-opening sheeted panels with adjustable width on the bottom,
- Ventilated panels, removable and retractable at the top,
- Anti-backing system with blocking by a large bar.
