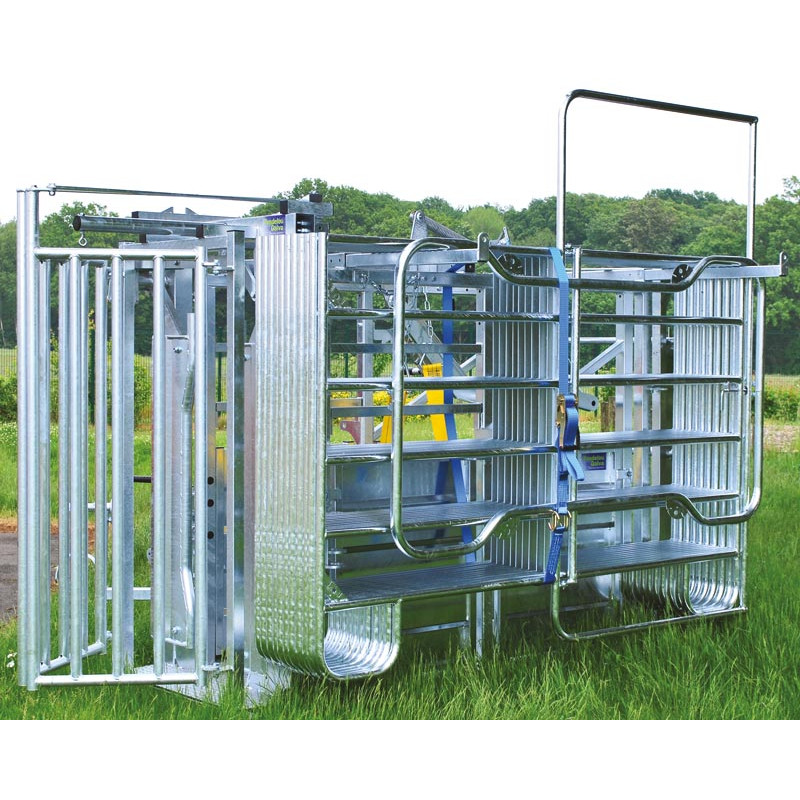

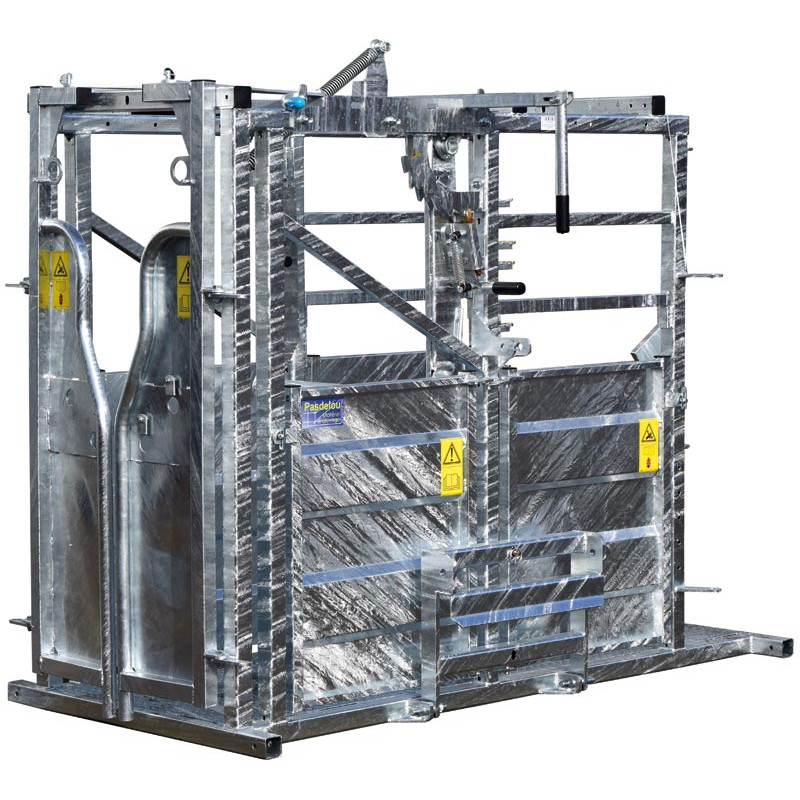

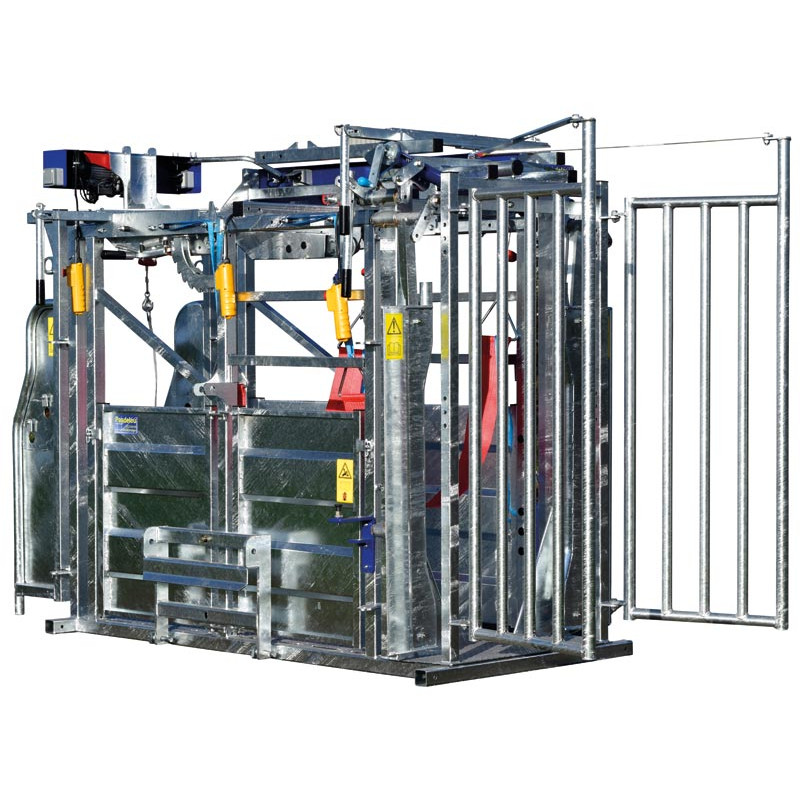

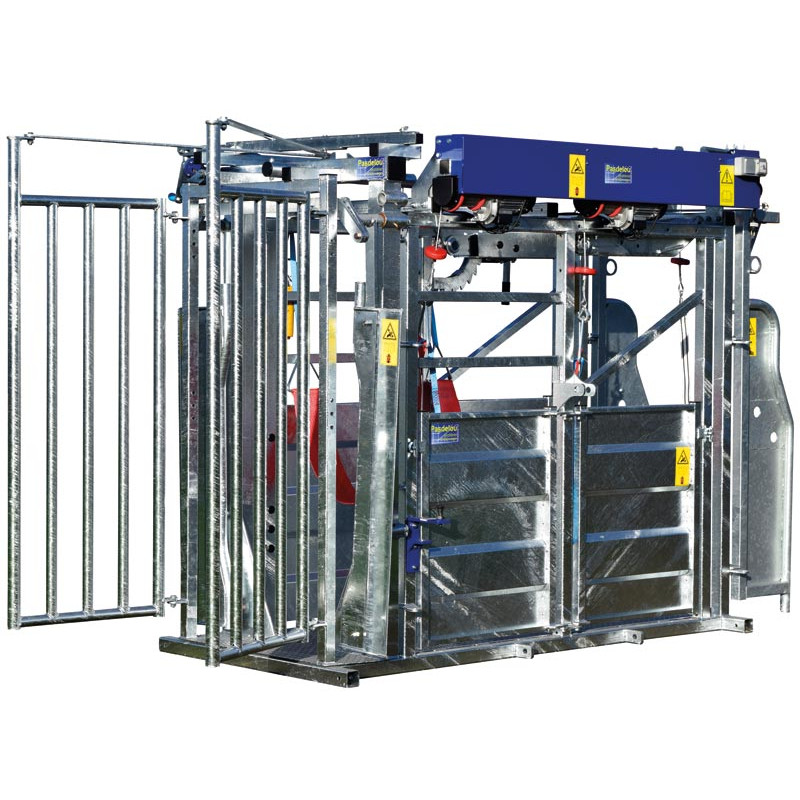

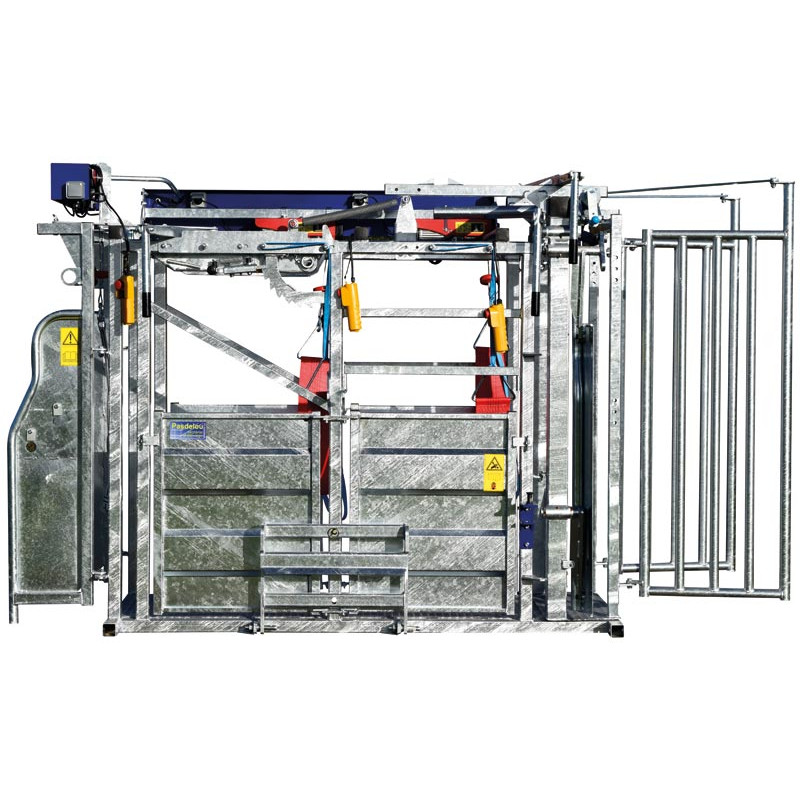

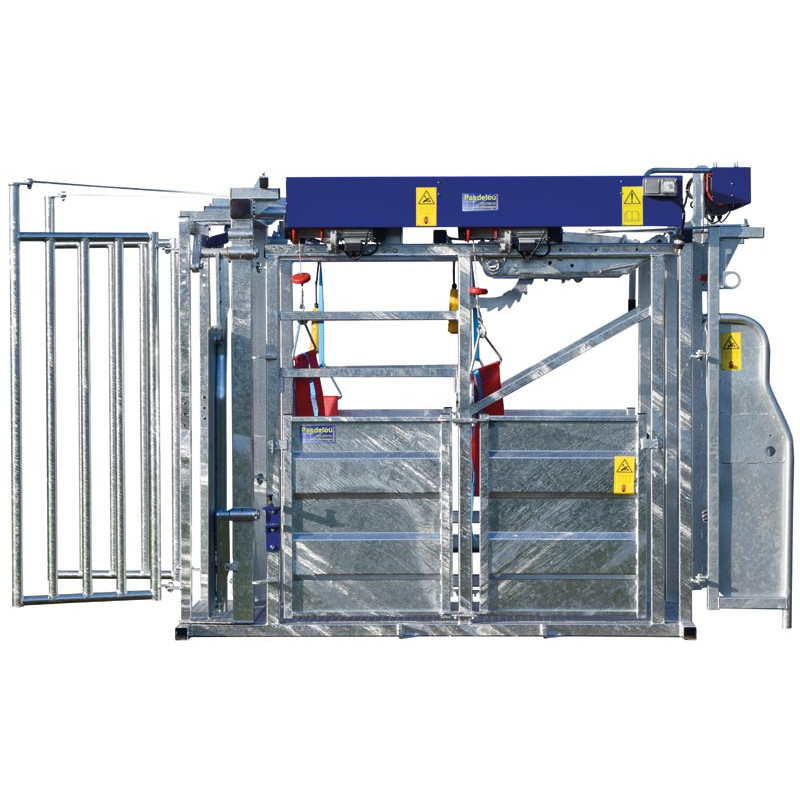

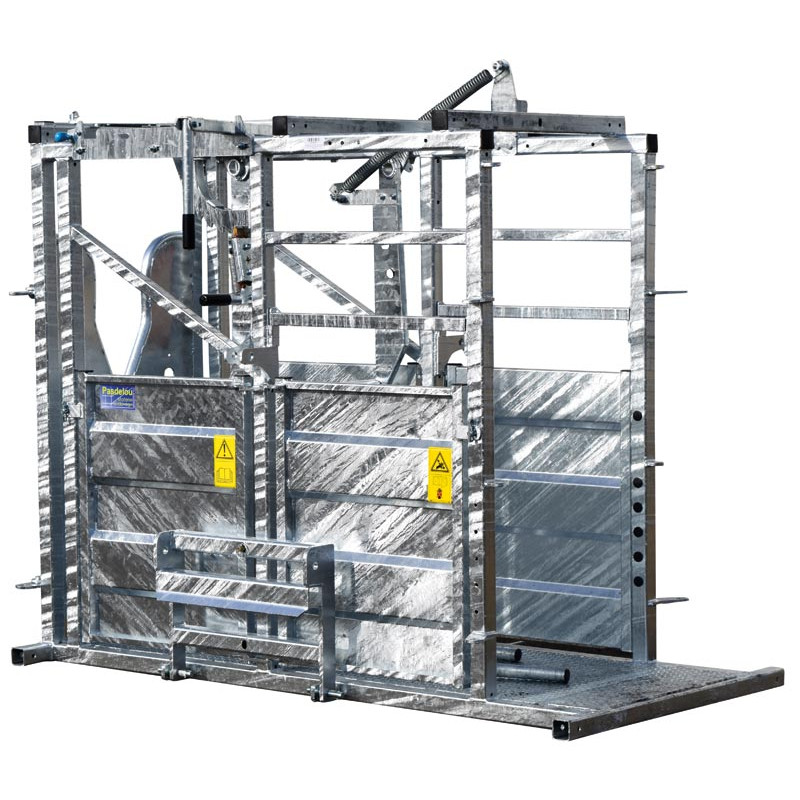

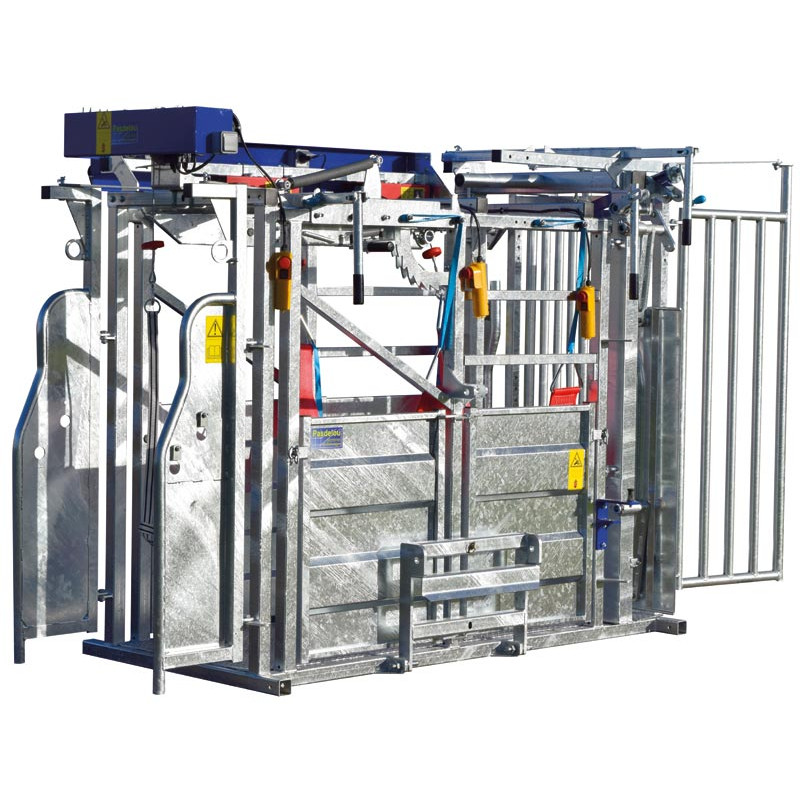

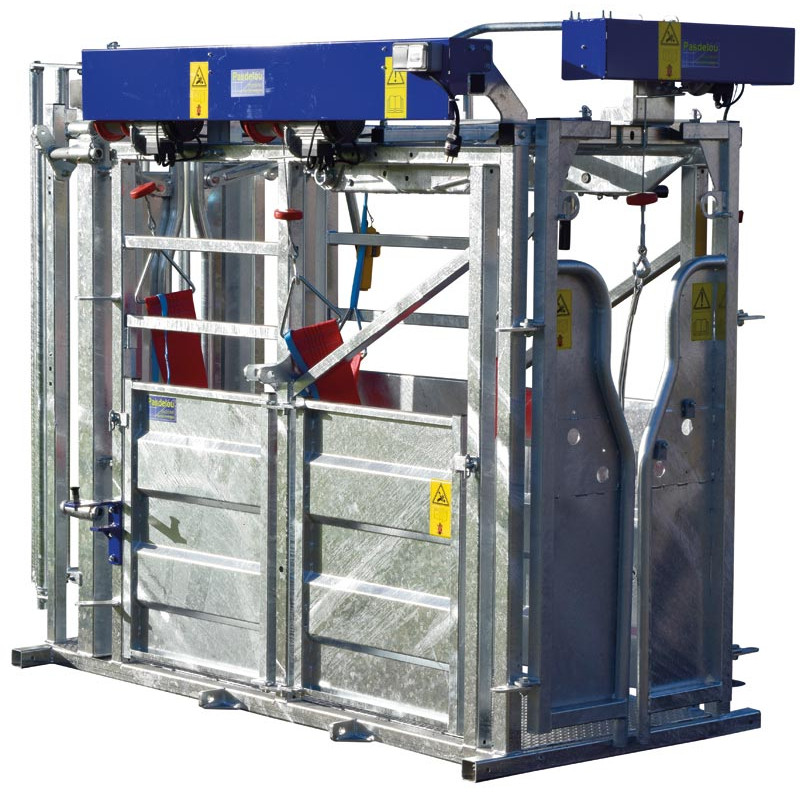

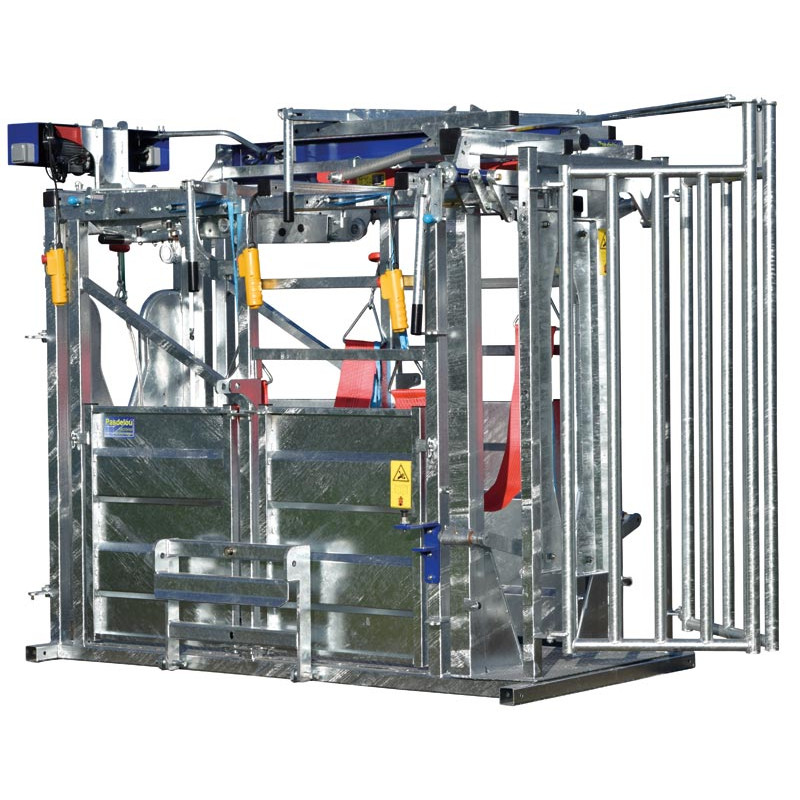

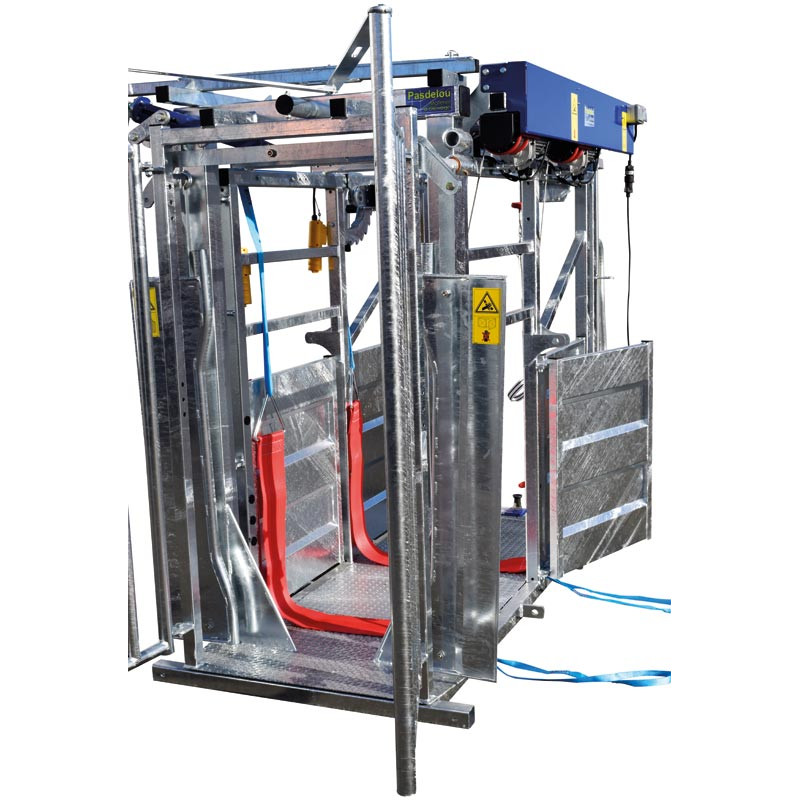

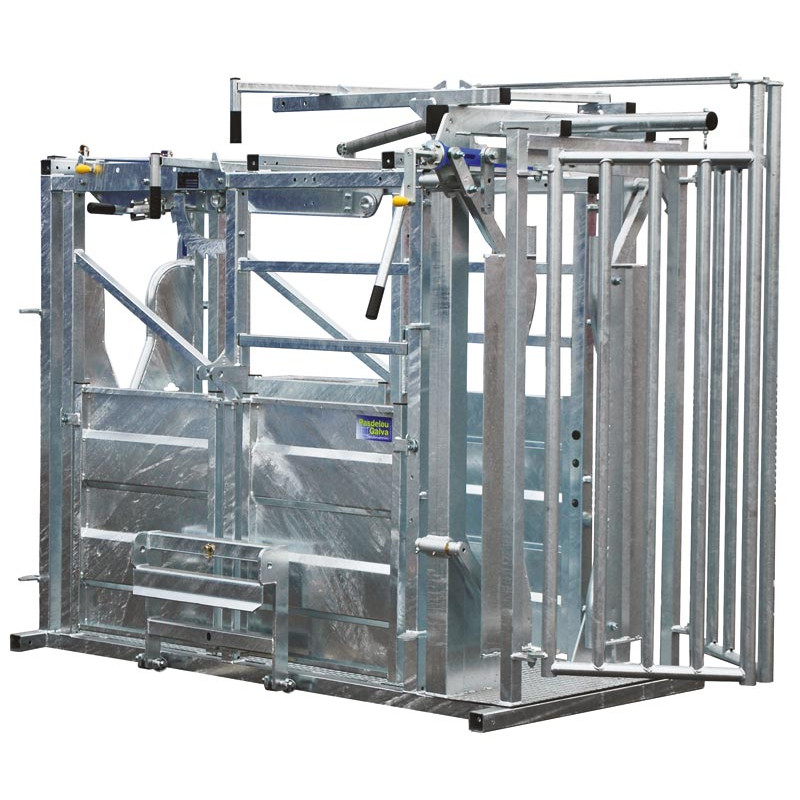

LFM crush - 4 gates - Fixed width sides - Side panels

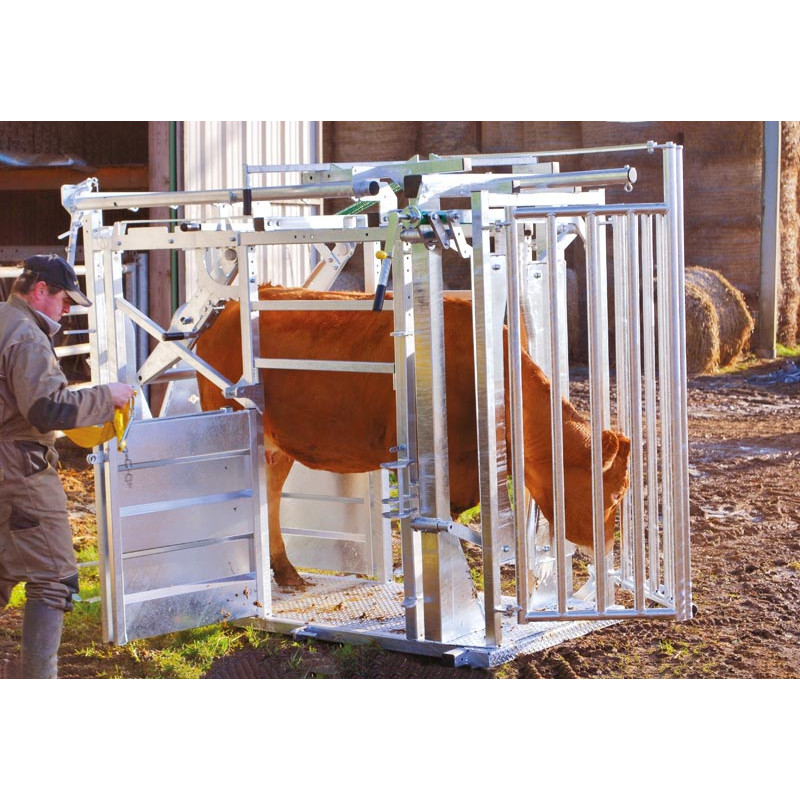

Crush that can be used for more sensitive work to be performed on livestock: hoof treatment etc.
For use in the open field or in the farmyard. Internal passage width adapted to the morphology of dairy and suckler cattle.

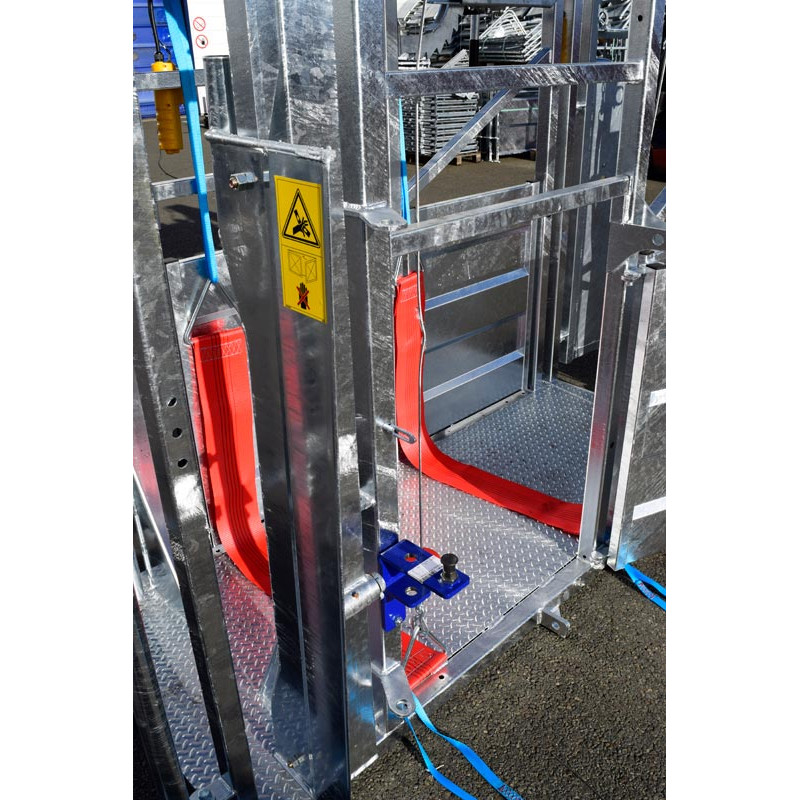

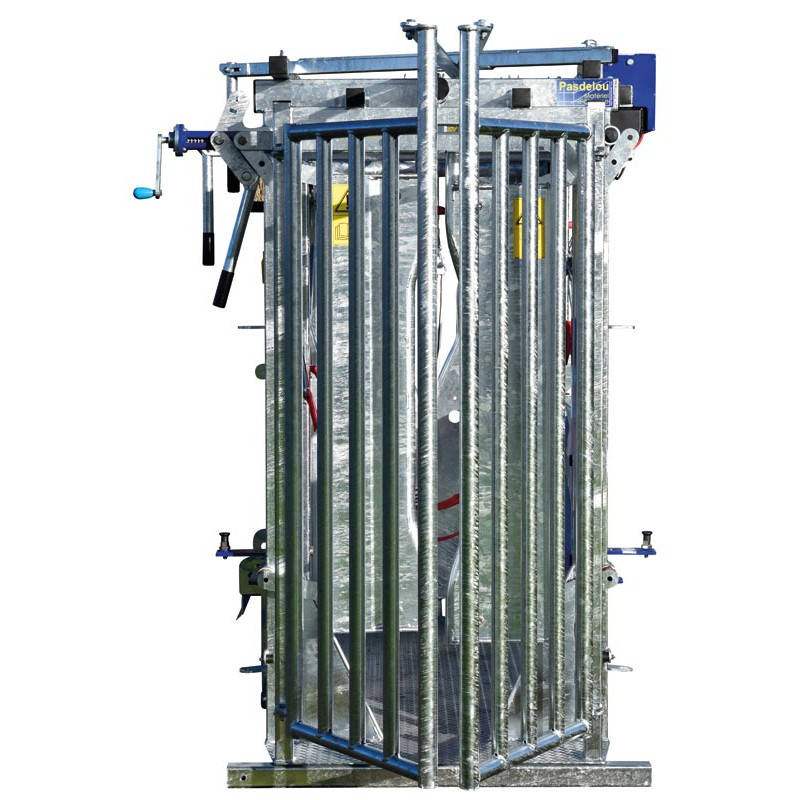

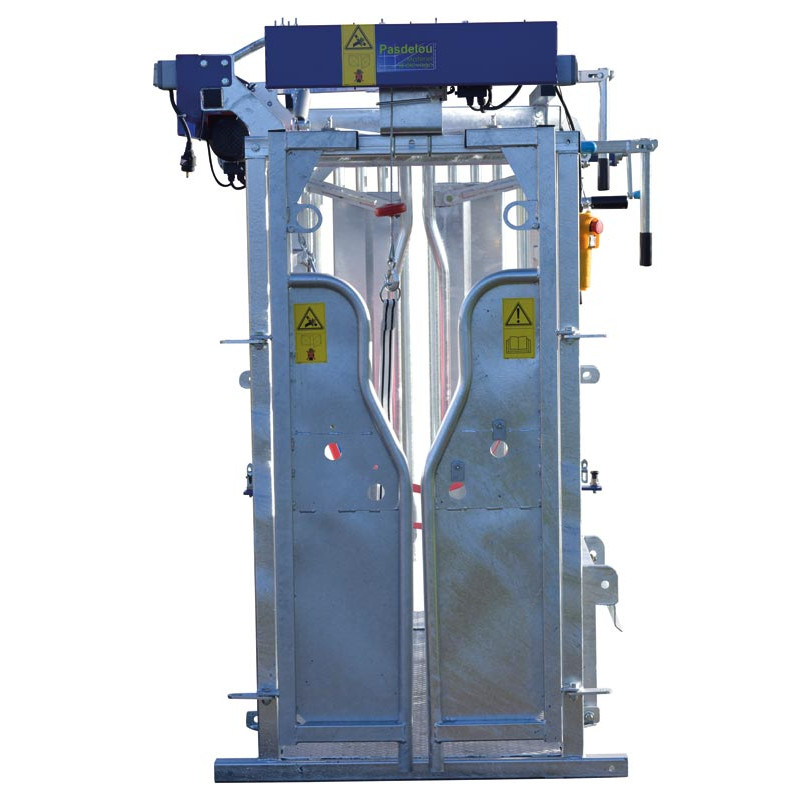

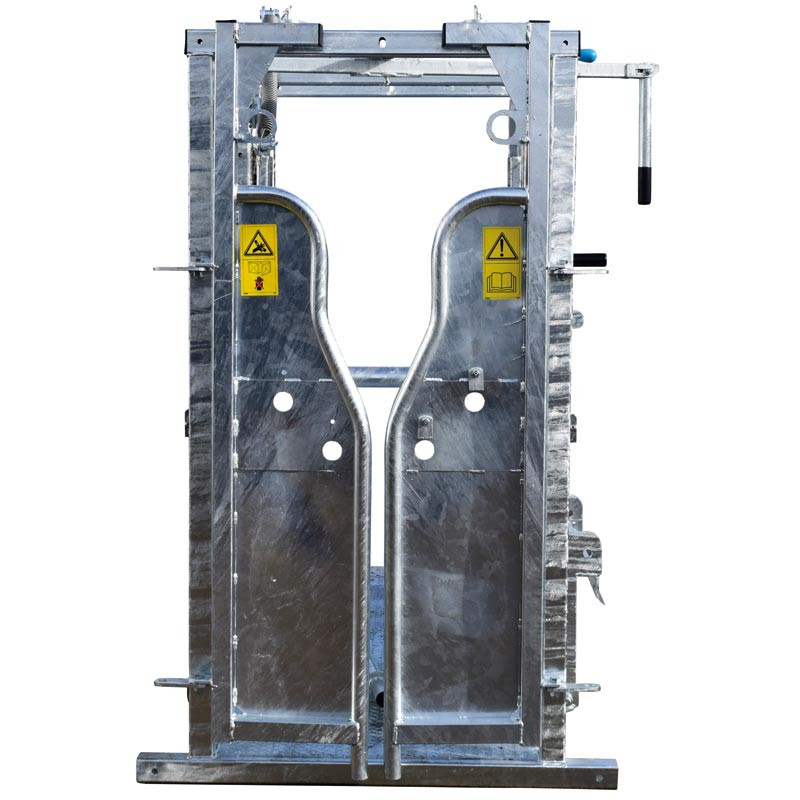

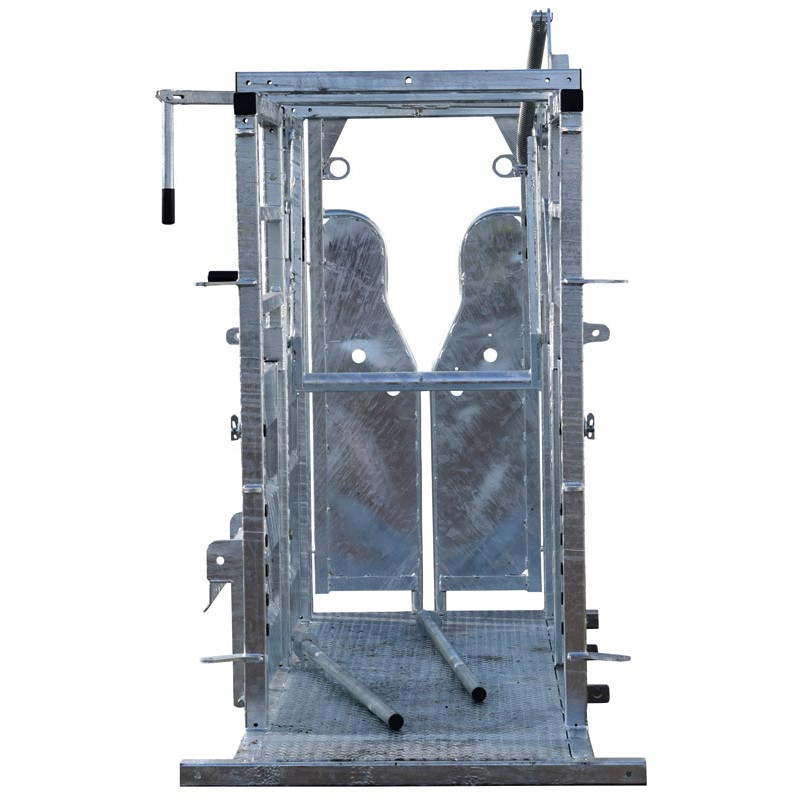

- Double rear insemination gate with reversible operating handle at the top, accessible on the right or on the left,

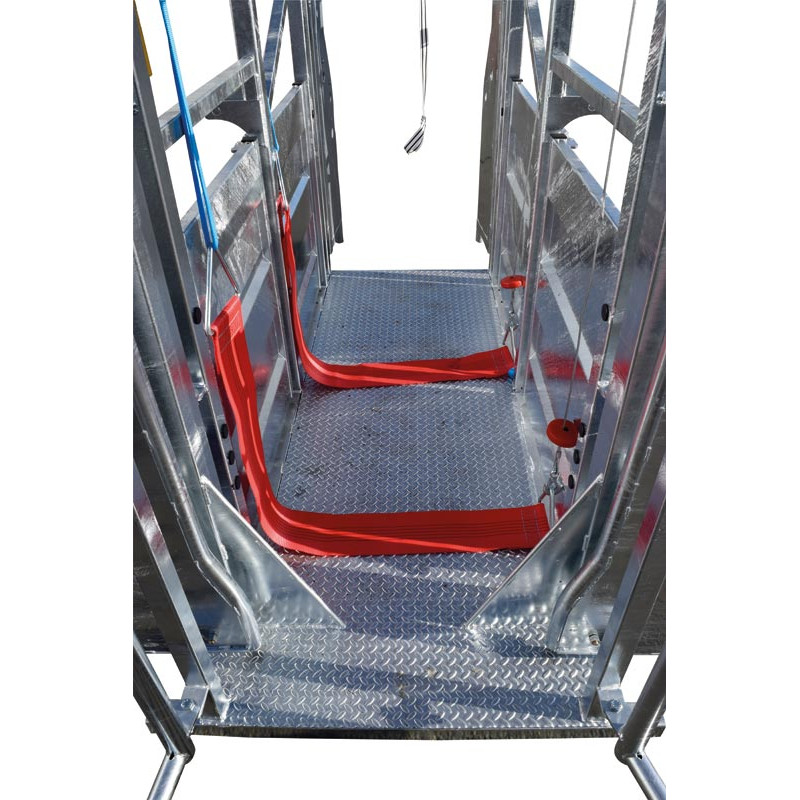

- Non-slip 4/6 mm chequer plate bottom, which limits the risk of slipping,
- Retractable control handle for double-leaved rear gate.
- Galvanised steel crush equipped with a ⧄ 60 mm frame,
- Rear gates with slots for affixing a hind leg blocking bar when using the winch,

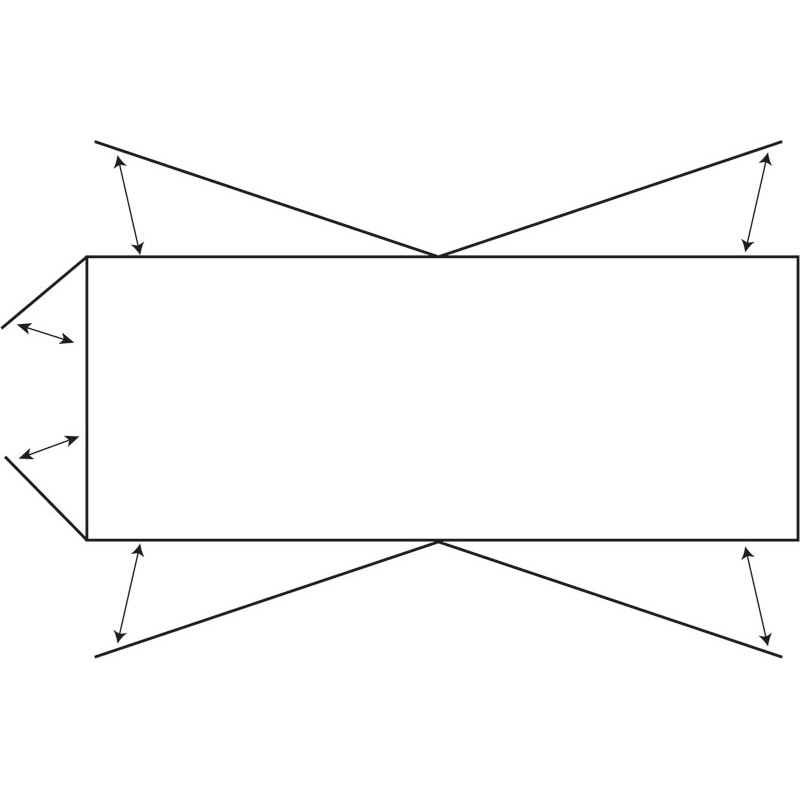

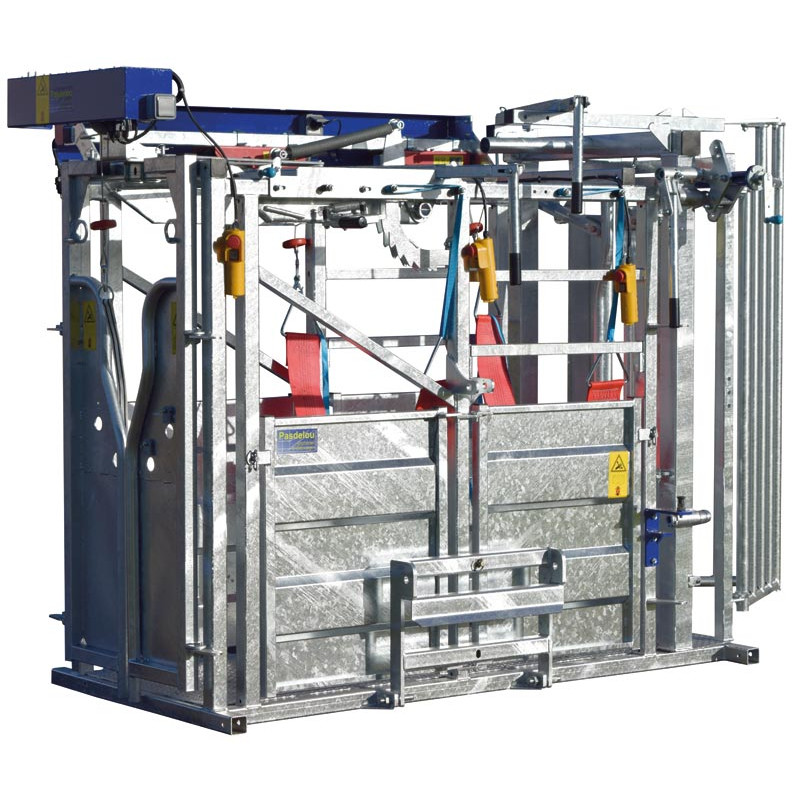

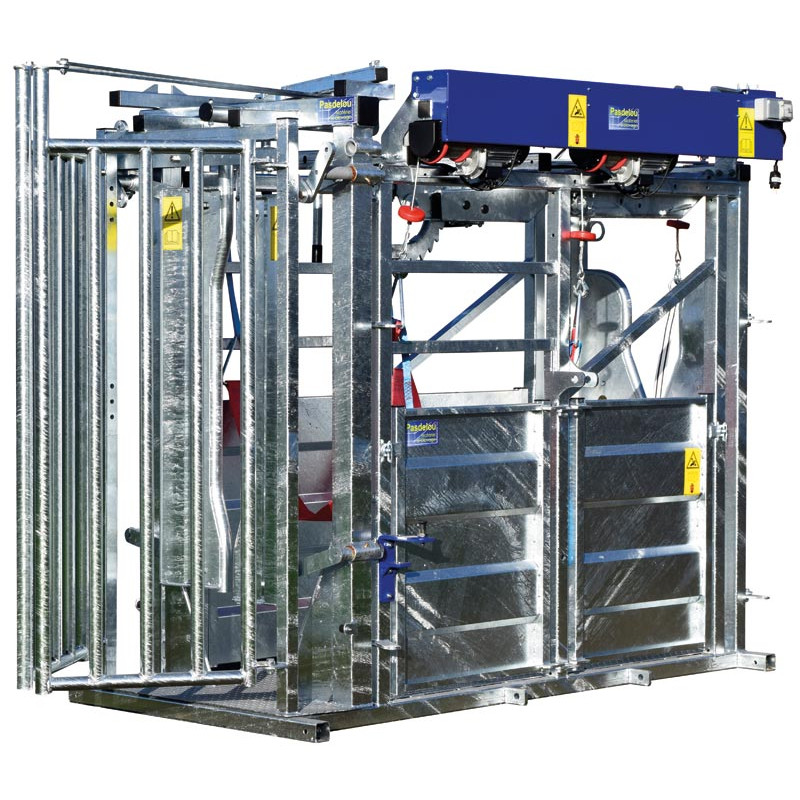

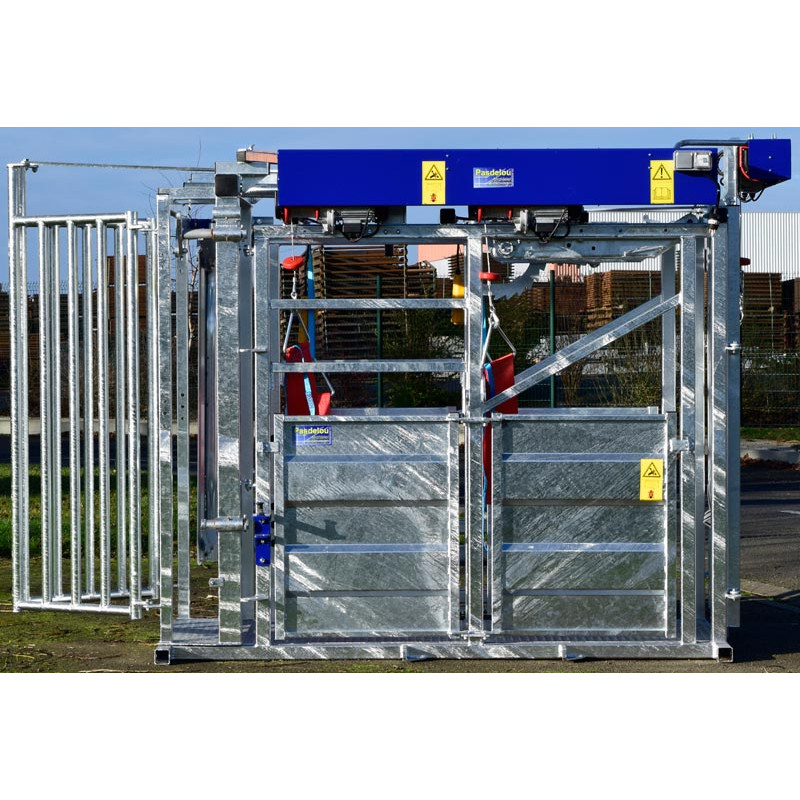

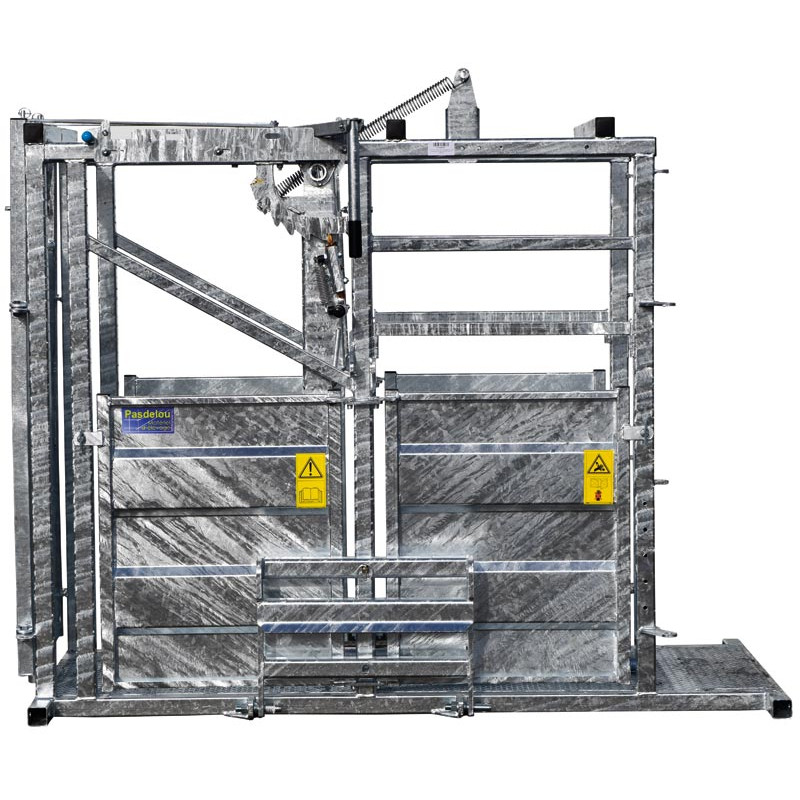

- Side panels made up of 4 sheet metal gates with integral opening,

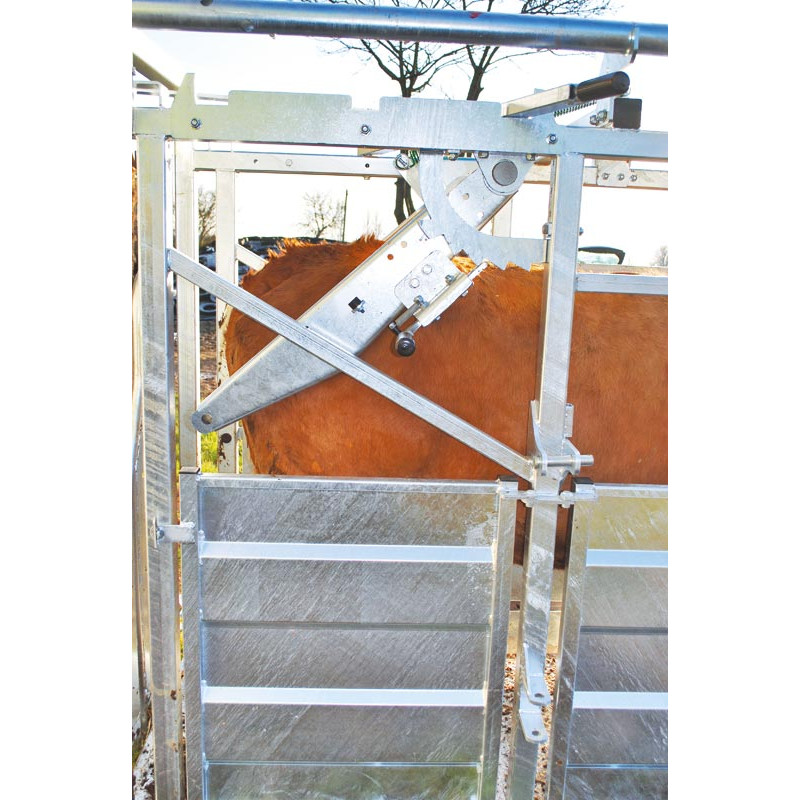

- Anti-backing system with rack and springs providing ideal restraint for animals of various sizes (young cattle and adult animals) with right or left reversible control,
- Retractable 3-point hitch. Can be mounted on the right or left of the crush,

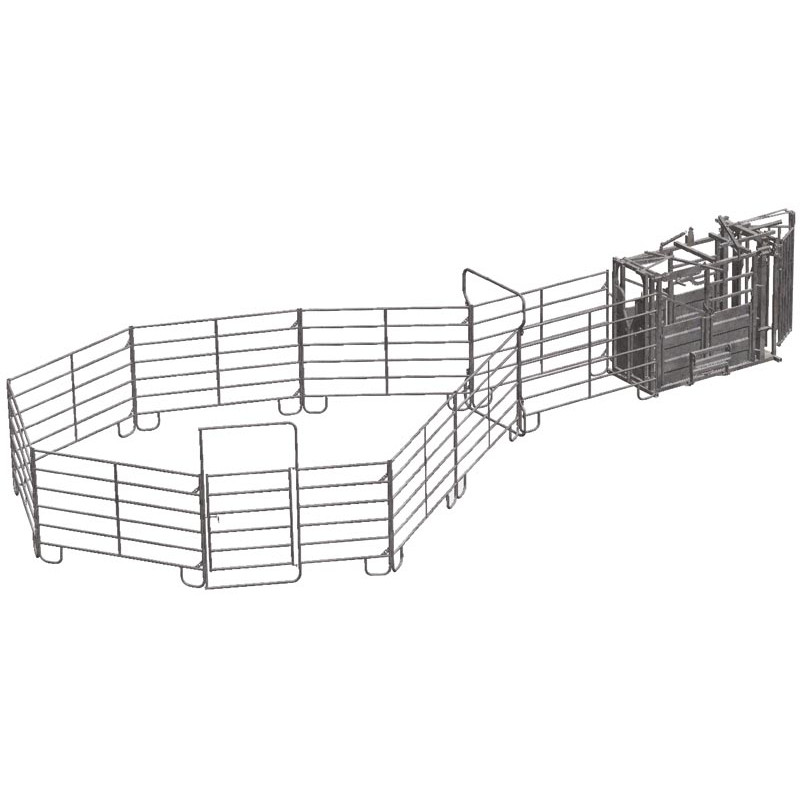

- Factory-fitted equipment at the rear to receive panels,

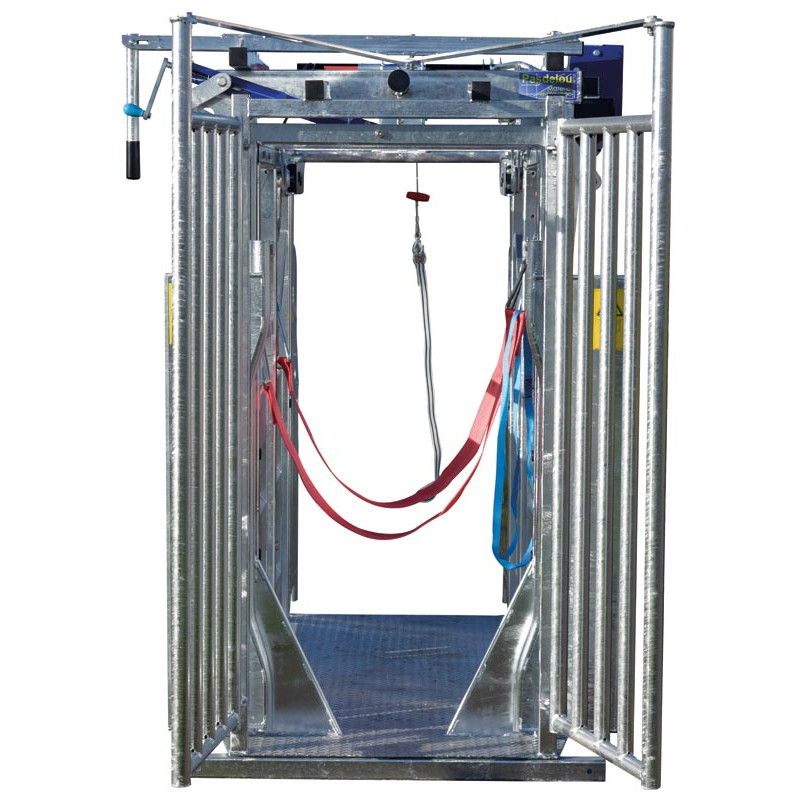

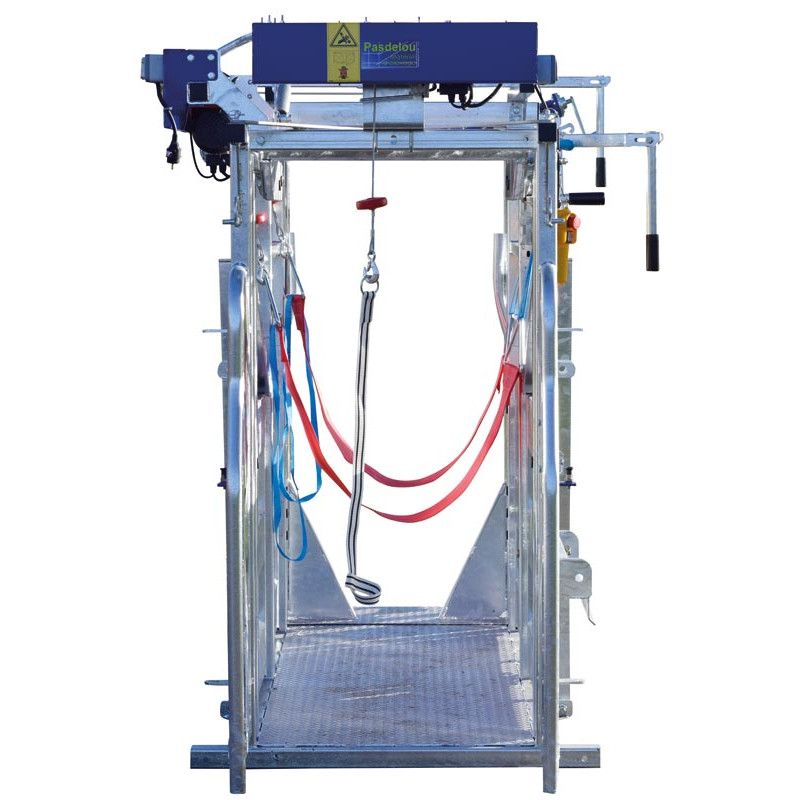

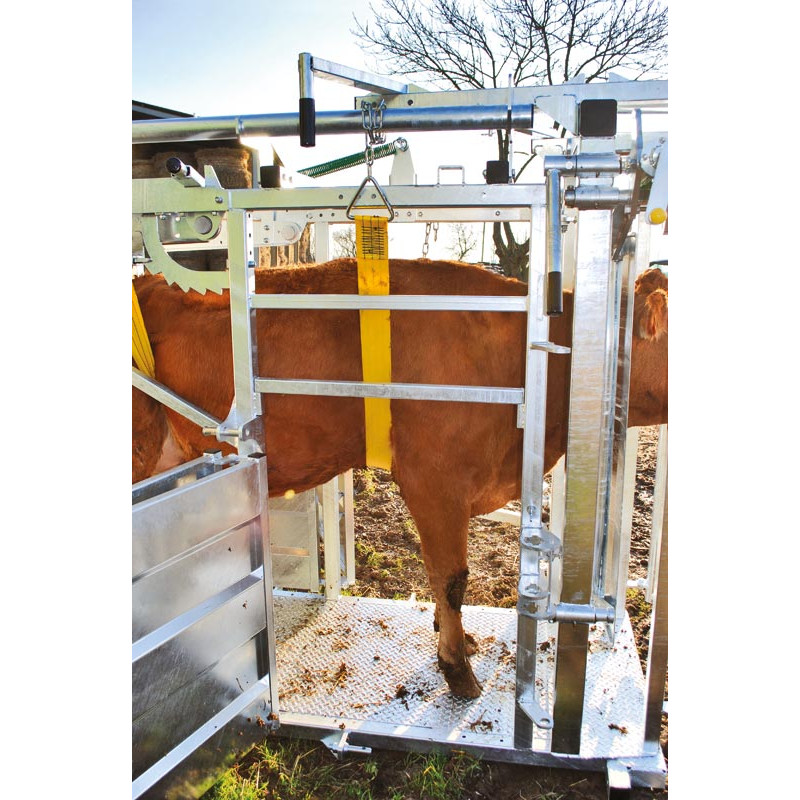

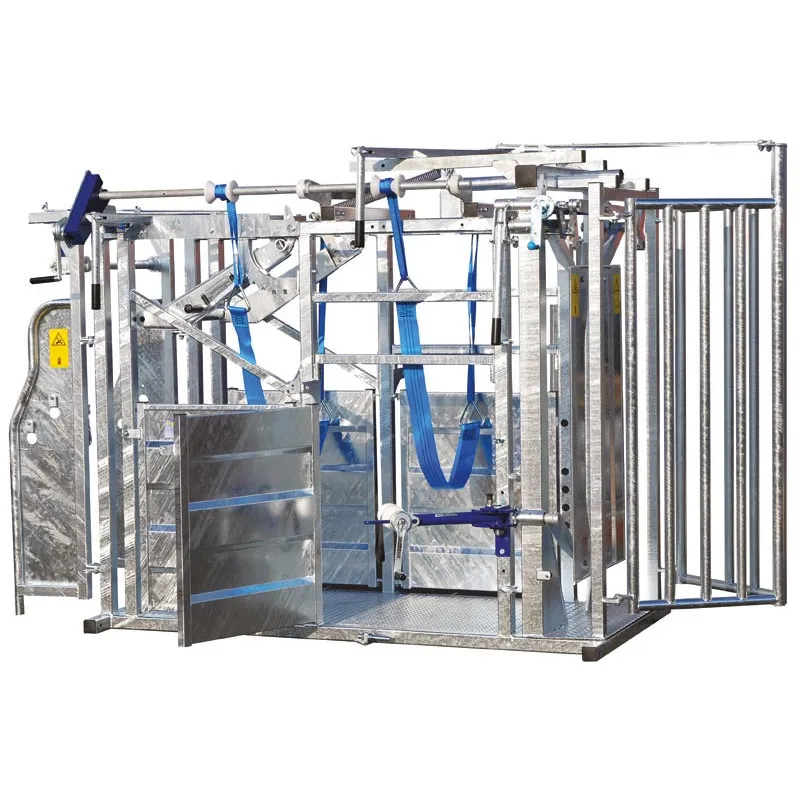

- Belly strap, length 1450 x width 150 mm, polyester with galvanised triangles,

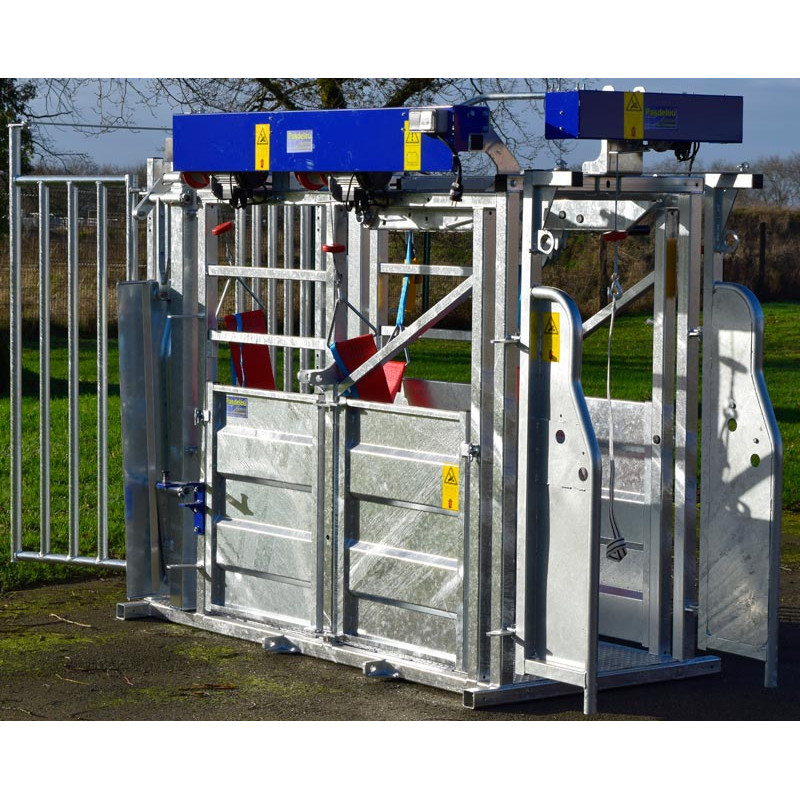

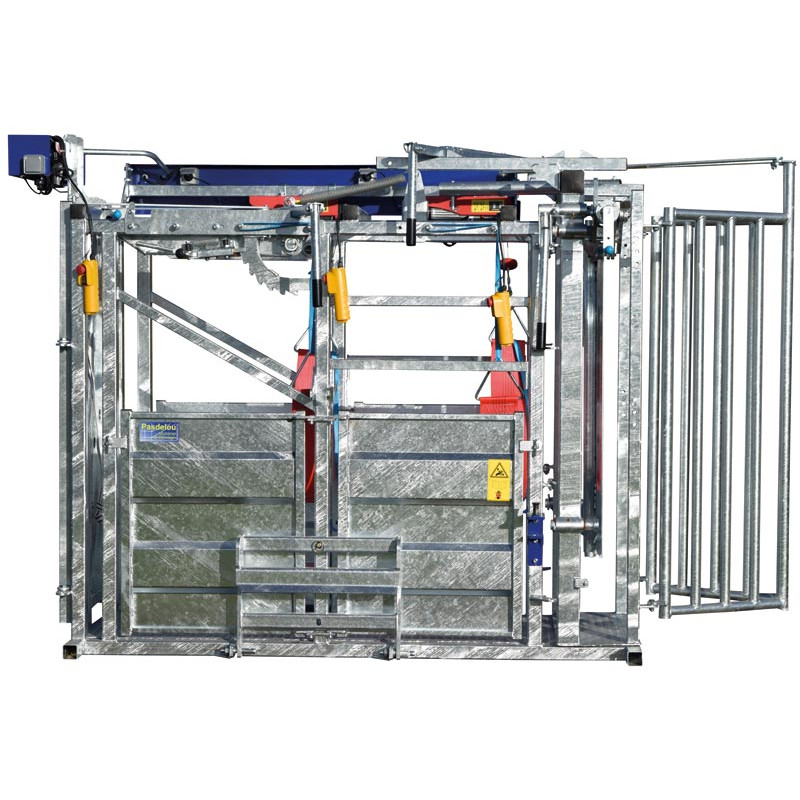

- Manual trimming kit for front hooves, which can be positioned to the right or left. Supplied with manual or electric trimming kit.
Optional PCCM headgate.
Sold without headgate and weighing kit. Sold without headgate, weighing kit or trimming kit.
Not compatible with option PG100 11 34 - Electric trimming kit.
- Height
- 2.06 m
- Length
- 2.55 m
- Width
- 1.20 m
- Sales unit
- Unit
- Packaging
- Without packaging
- Operation
- Manual
- Sides
- Fixed width
- Inside width
- 0.80 m
- Inside length
- 2 to 2.10 m
- Side panels
- sheeted gates
- Side openings
- 4 sheeted gates
- Floor
- Galvanised chequer plate
- Drafting
- 1 exit
- Access to the animal
- Complete
- Purpose
- Trimming/Weighing/Care
- Type of animal
- Mixed: dairy and beef cattle
- Installation
- Fixed and mobile crush
