Feature-Benefits :

Ideal for weighing and monitoring growth.
Internal passage width adapted to cattle morphology.
Total obstruction of the cattle’s vision to better channel them.

> More details

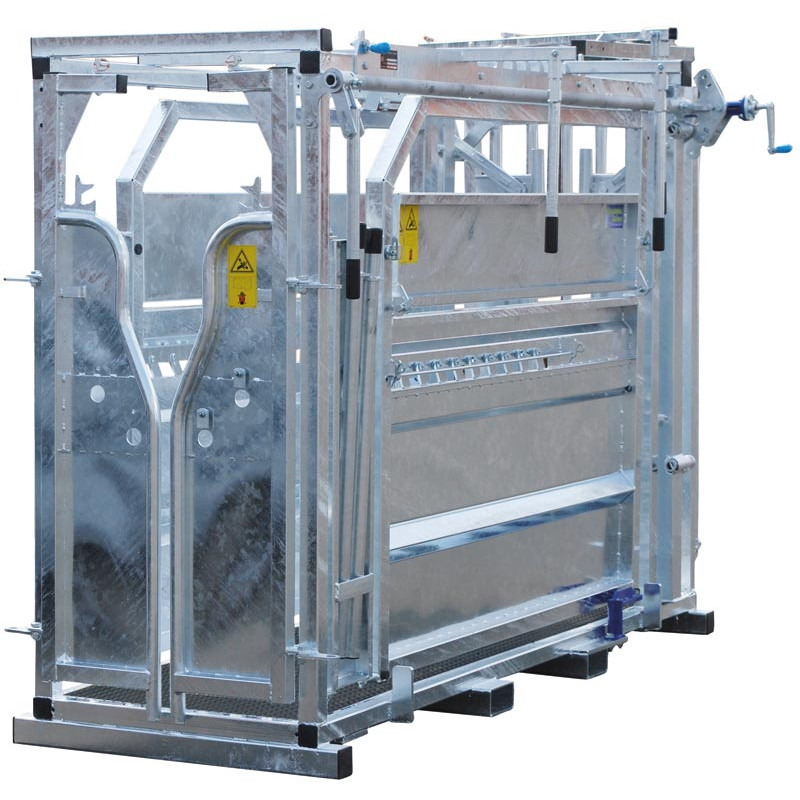

- Galvanised steel crush equipped with a ⧄ 60 mm reinforced frame,
- Double-leaved rear insemination gate with reversible operating handle at the top, accessible on the right or on the left,
- Factory-fitted non-slip mat on the bottom to prevent slipping and to limit noise,
- Slots under the crush so it can be moved either by forklift or via an optional 3-point hitch,
- Reinforced rotating connection rods welded to a mechanical tube with grease nipples,
- Retractable control handle for double-leaved rear gate,
- Retractable control handle for adjusting the inside width,
- Retractable control handle for the front PCCM gate,
- Movable sheeted end panels at the rear and movable rubber at the front to go with the adjustable sides.

- Fixed sheeted side panels with adjustable width at the bottom,
- Sheeted panels, removable and retractable at the top,
- Anti-backing system with blocking by a large bar.



Optional PCCM headgate.

Sold without headgate and weighing kit.
Height
2.03 m
Length
3.36 m
Width
1.42 m
Sales unit
Unit
Packaging
Without packaging
Operation
Manual
Sides
Adjustable width
Inside width
adjustable from 0.40 to 0.80 m
Inside length
2.60 to 2.70 m
Side panels
sheeted
Side openings
2 removable and retractable leaves, sheeted at the top
Floor
Rubber mat
Drafting
1 exit
Access to the animal
Top part
Purpose
Weighing/Care
Type of animal
Beef cattle
Installation
Fixed and mobile crush
