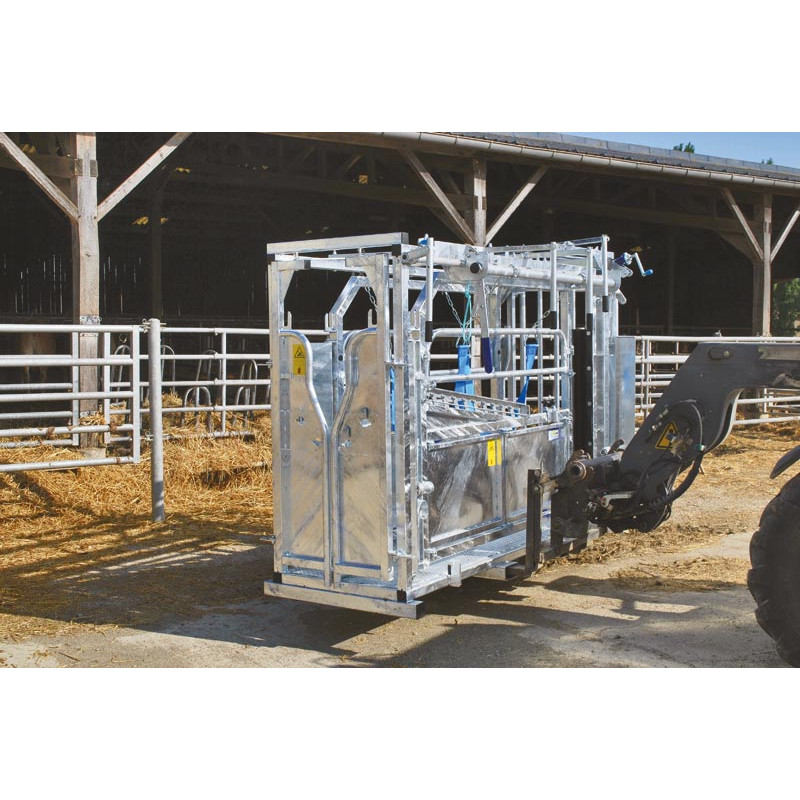

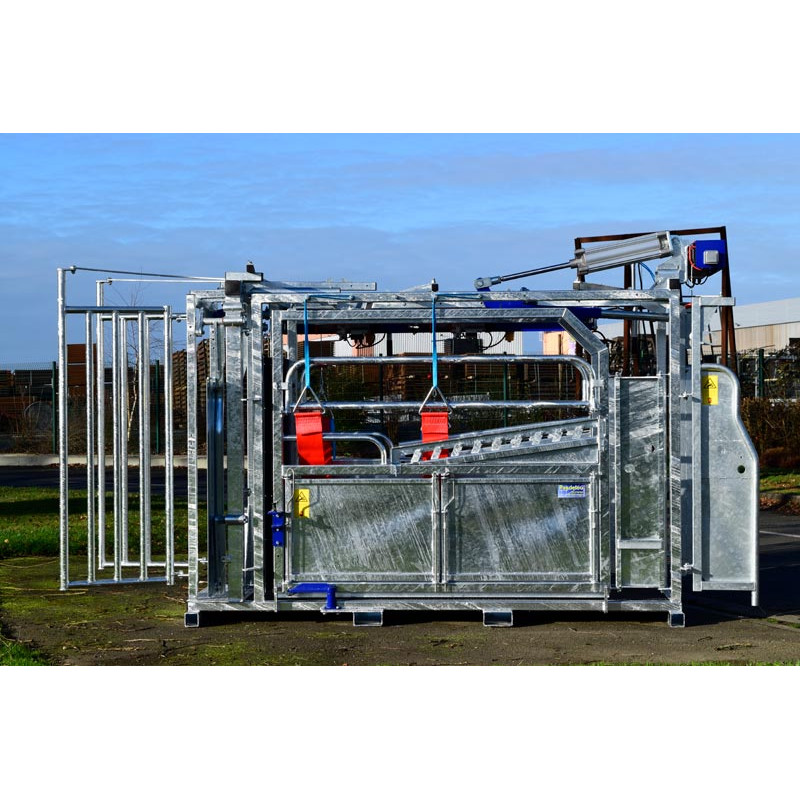

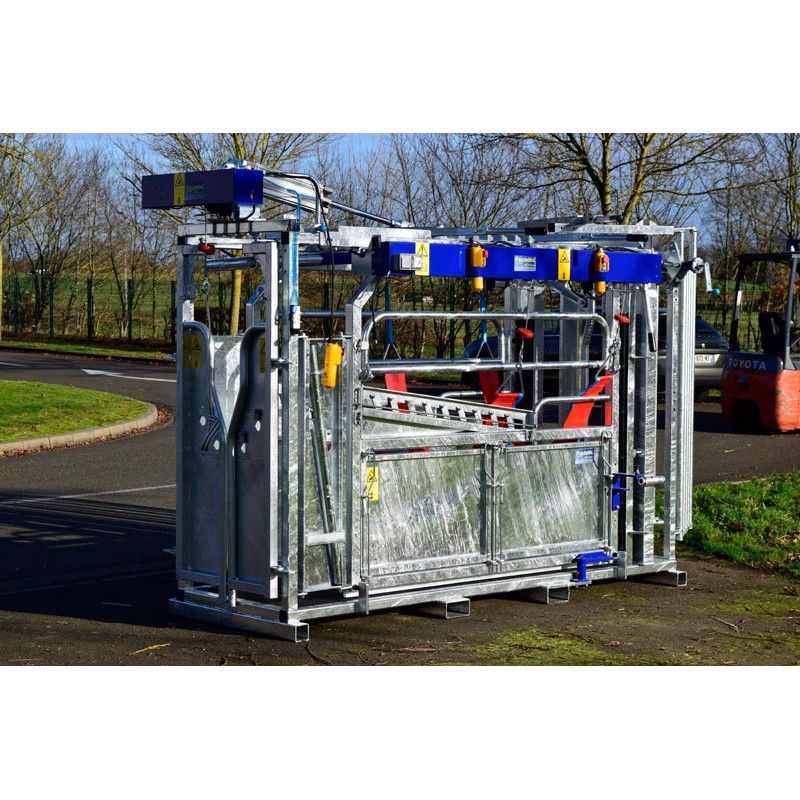

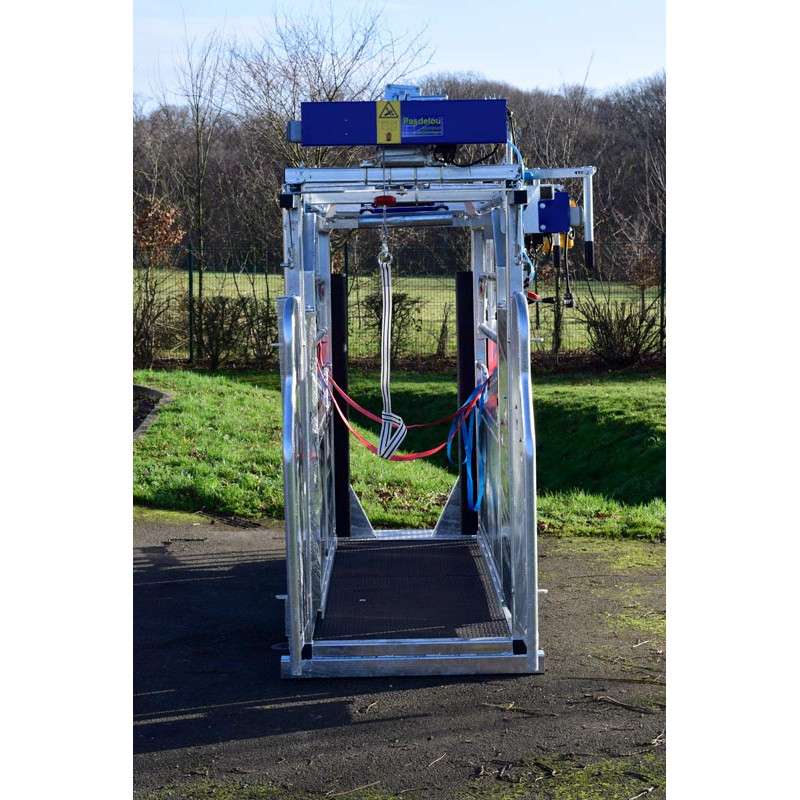

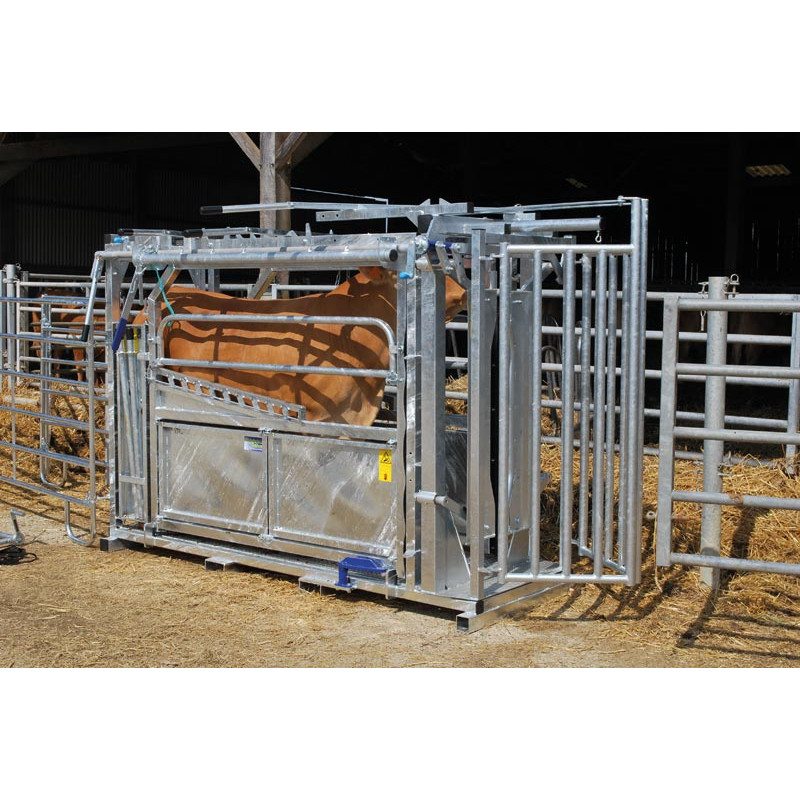

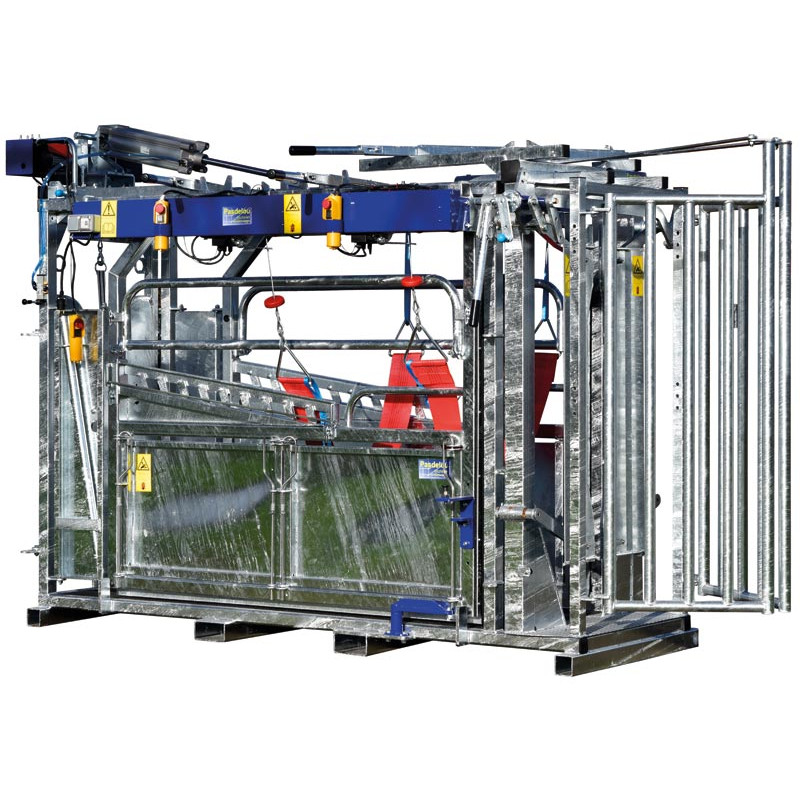

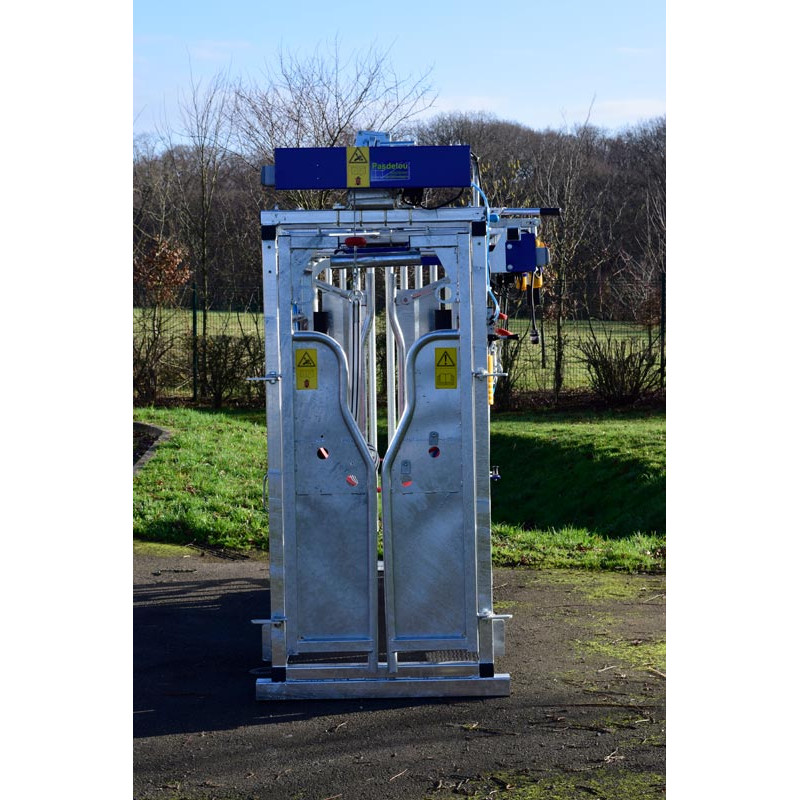

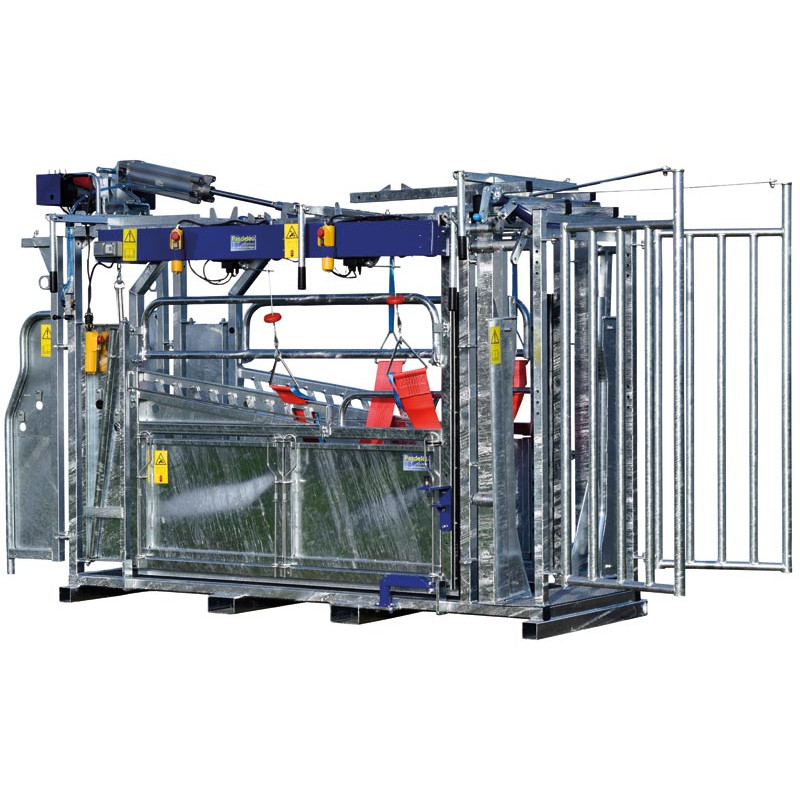

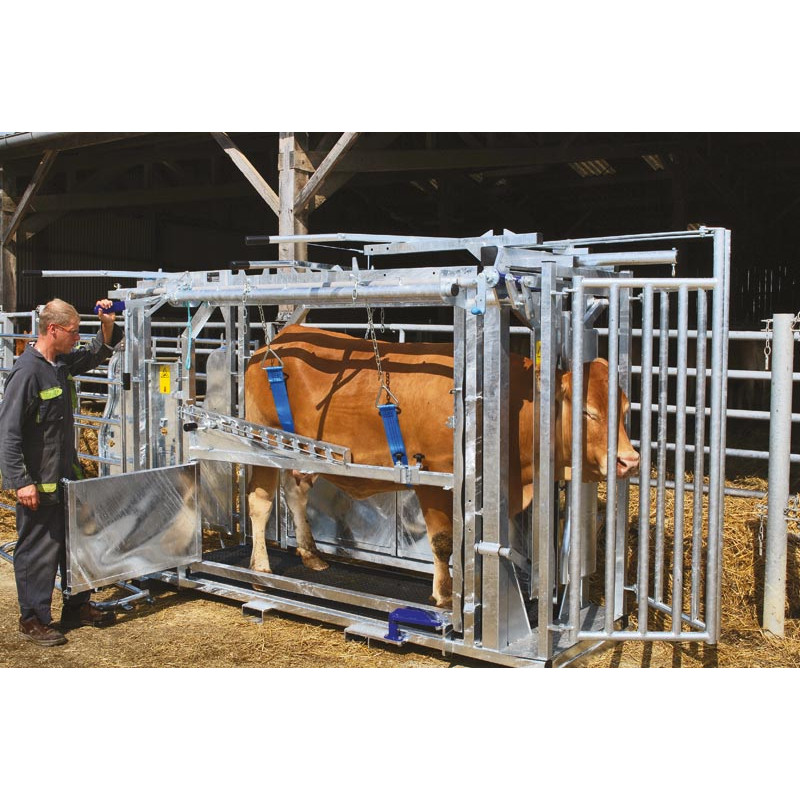

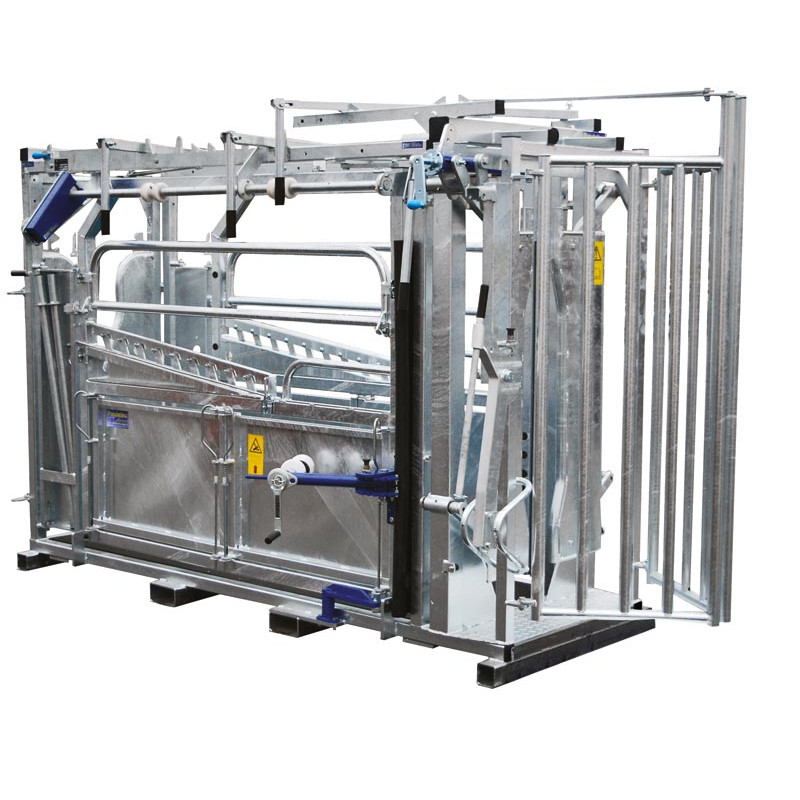

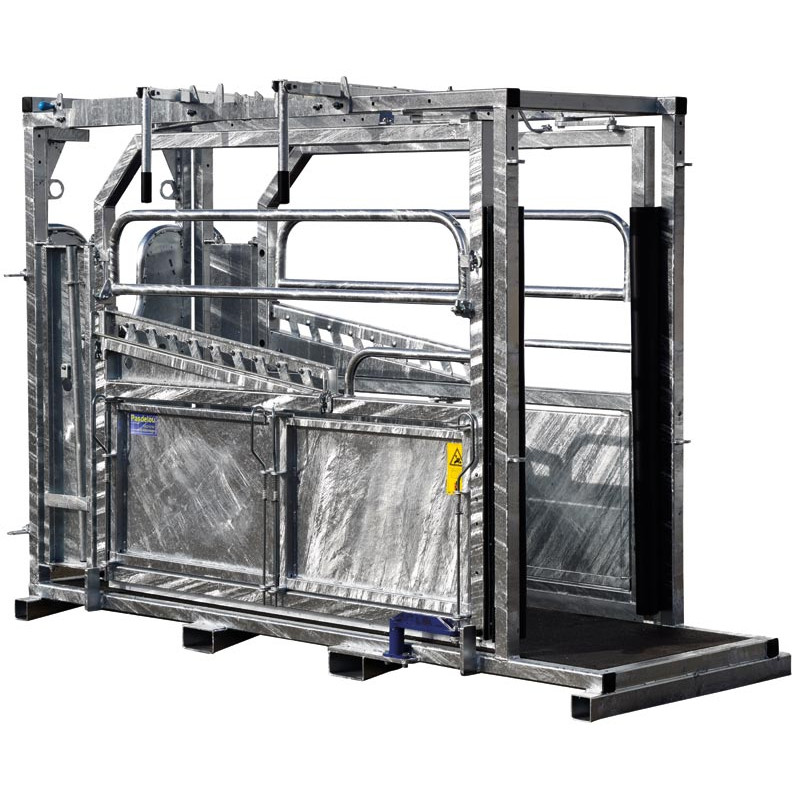

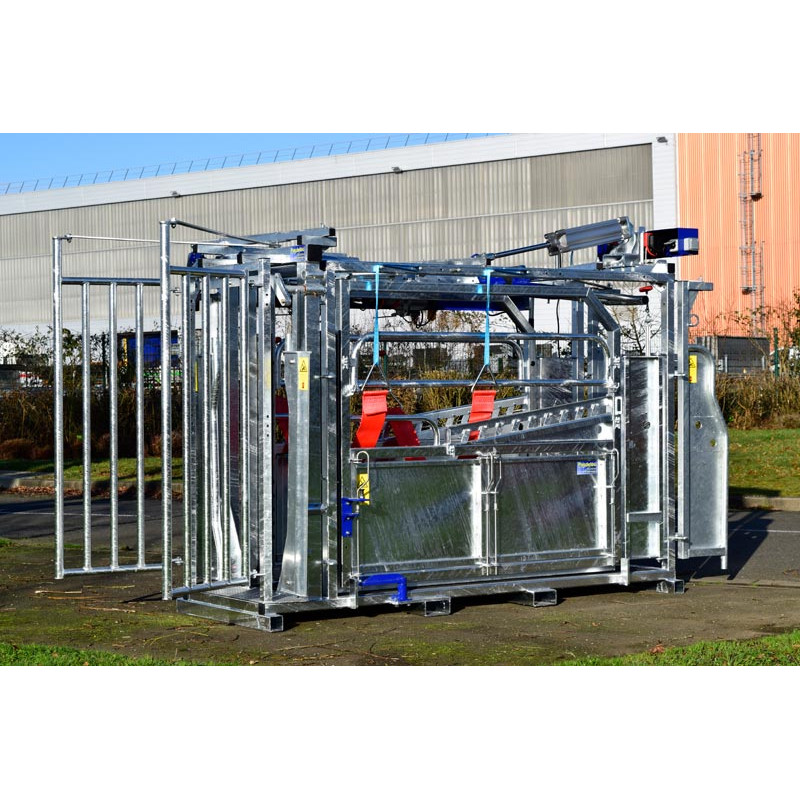

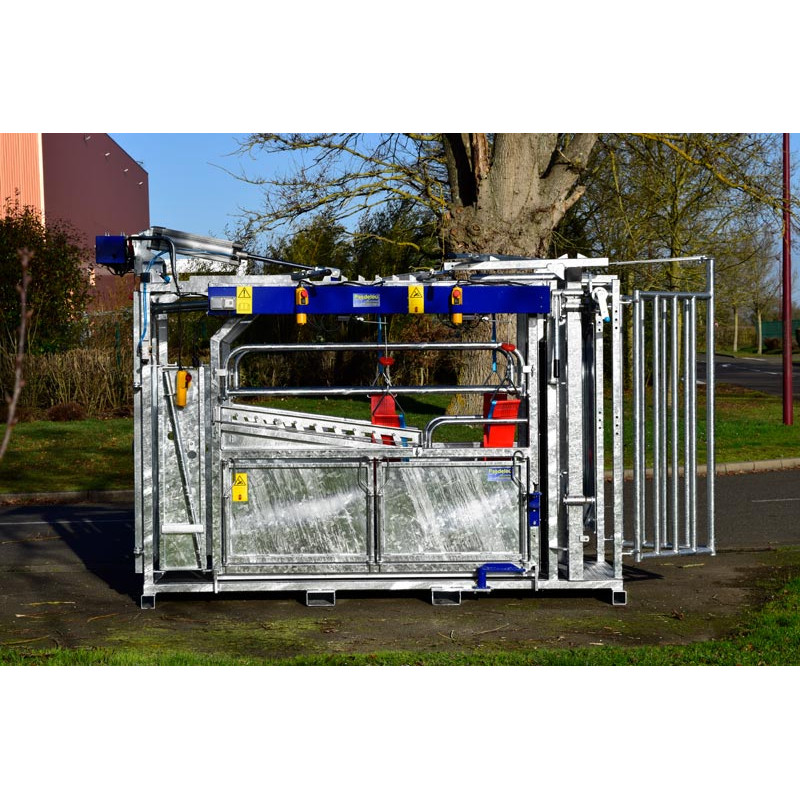

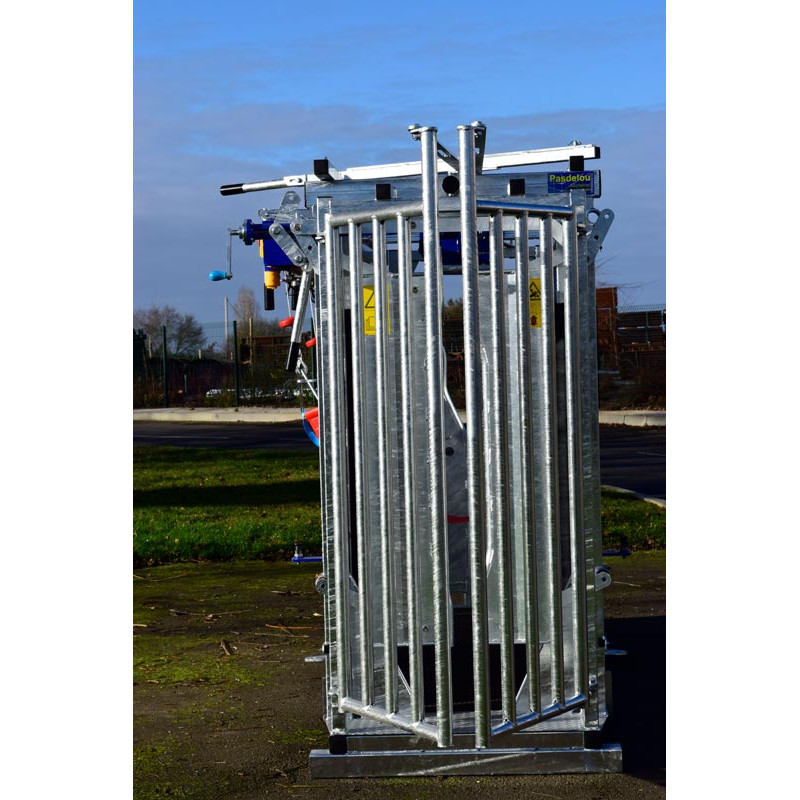

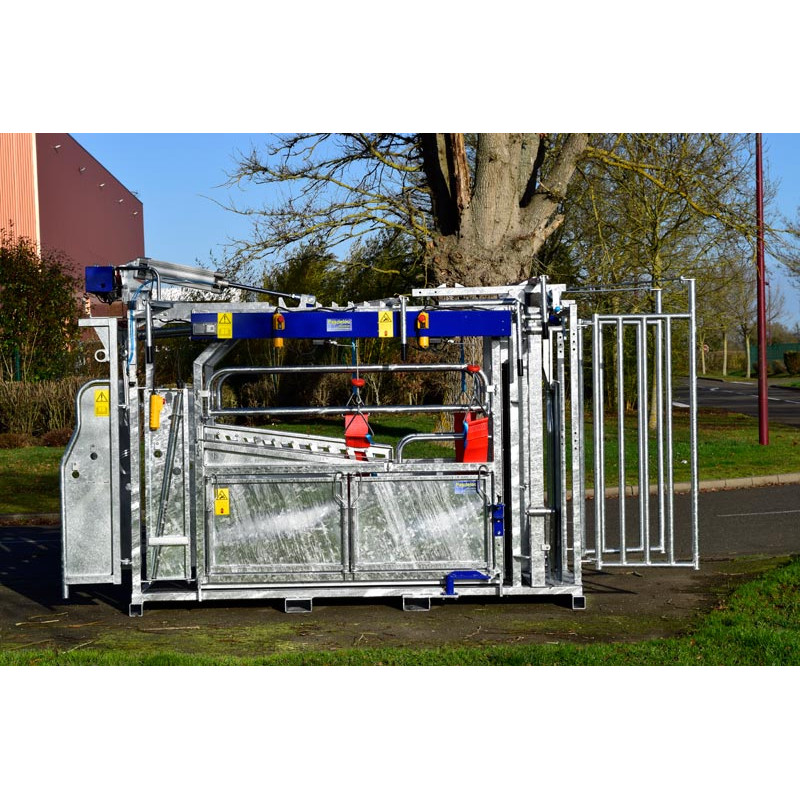

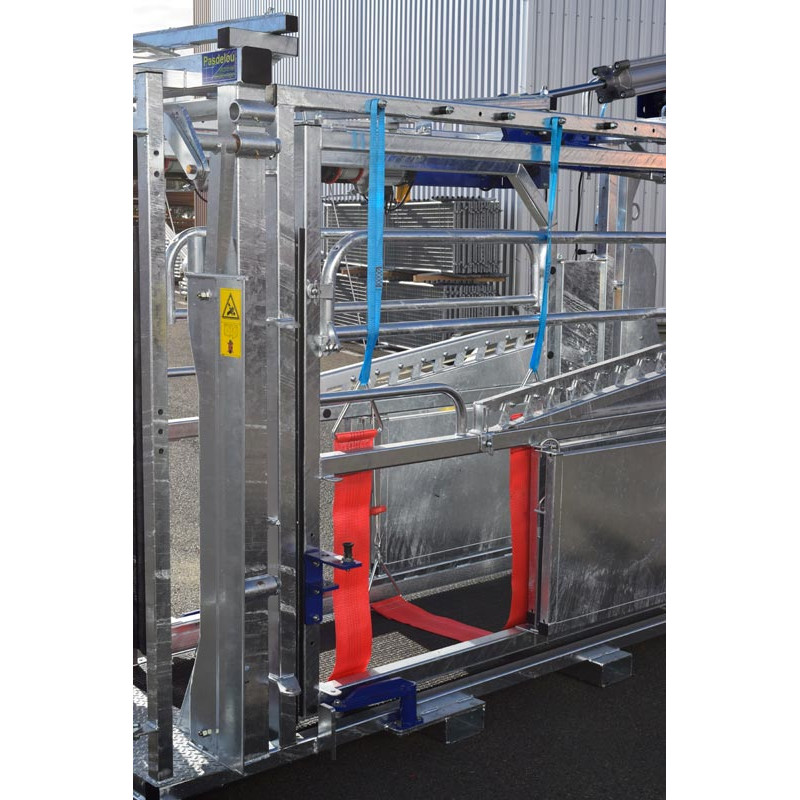

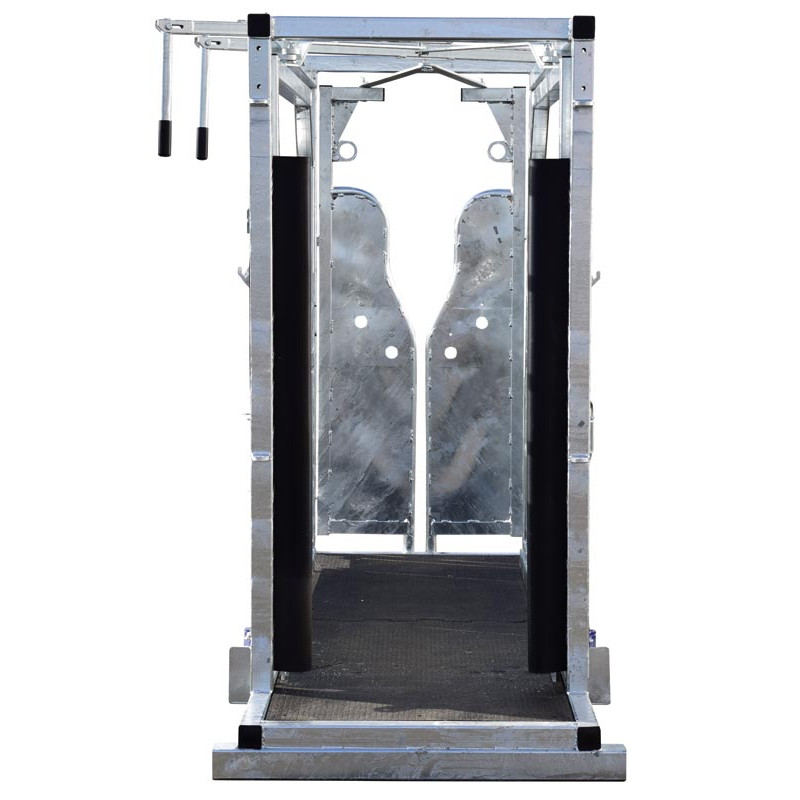

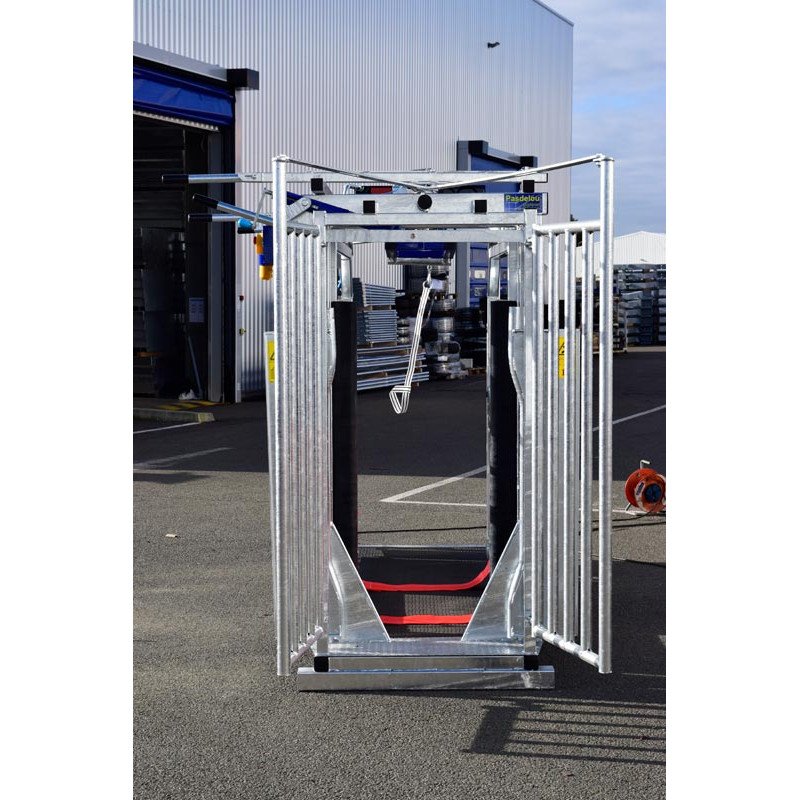

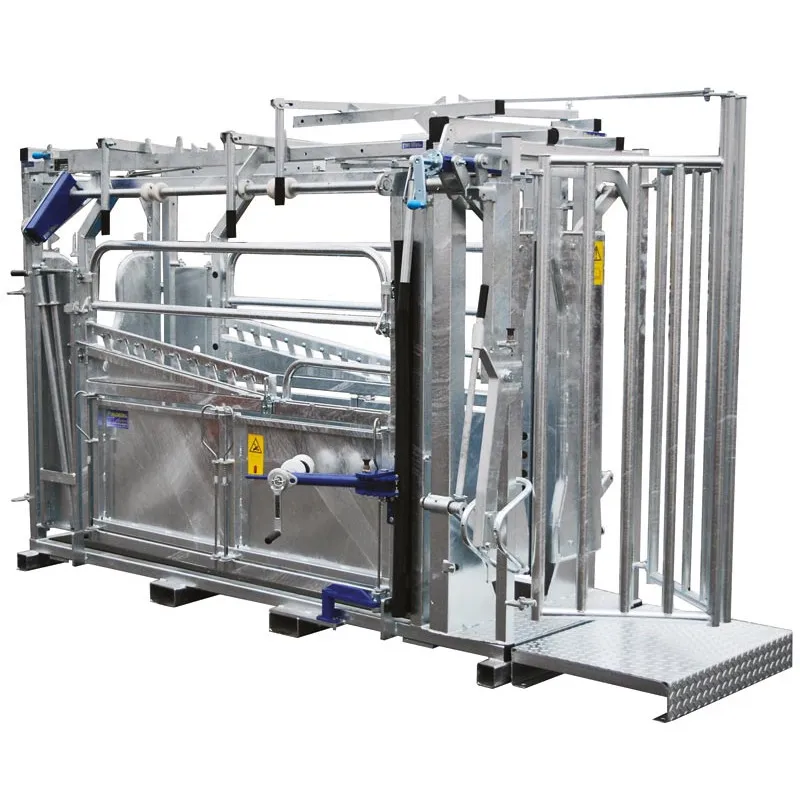

LVM crush - 4 gates - Adjustable sides - side panels with gates
Feature-Benefits :
> More details

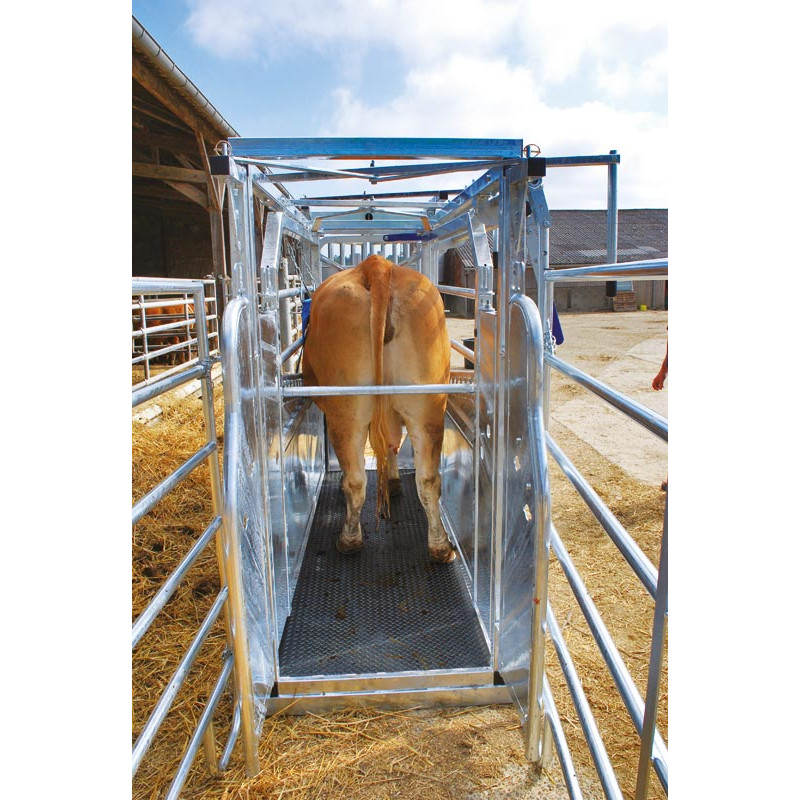

Internal passage width adapted to cattle morphology.
Easy to maintain and disinfect.
Access to the entire animal flank
- Galvanised steel crush equipped with a ⧄ 60 mm reinforced frame,

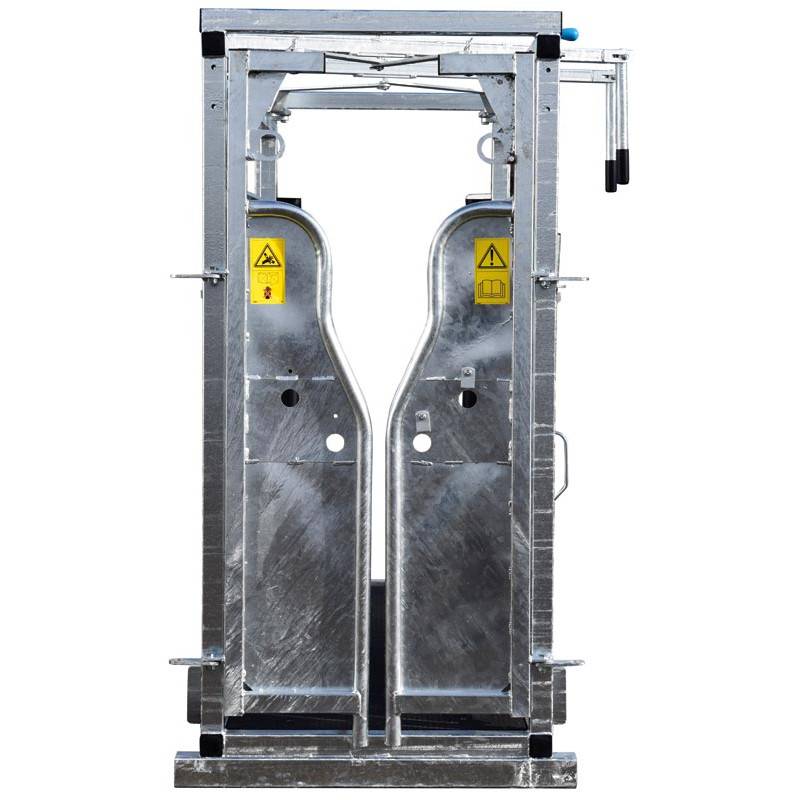

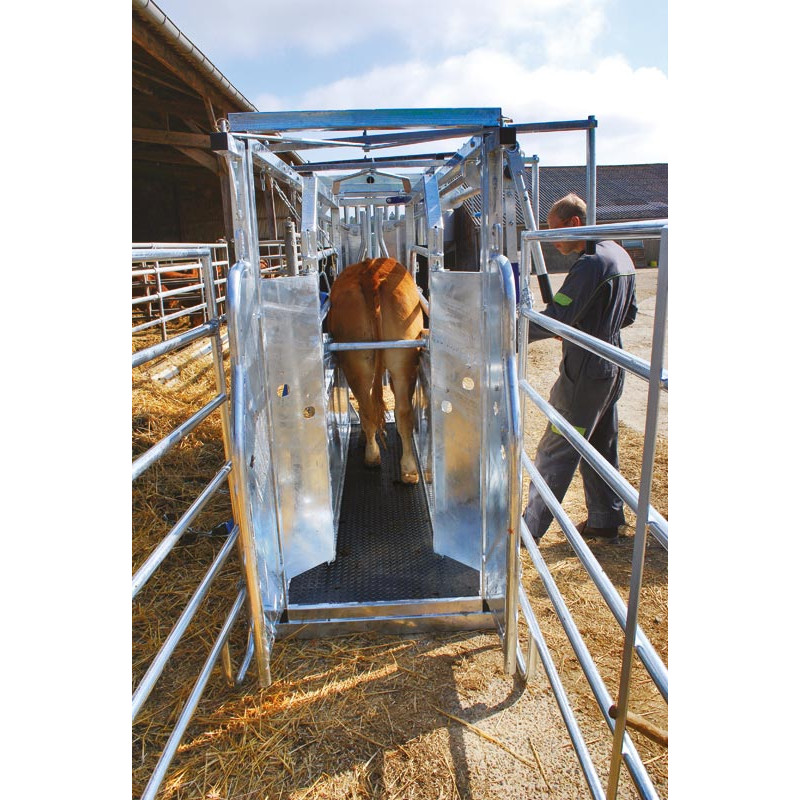

- Double-leaved rear insemination gate with reversible operating handle at the top, accessible on the right or on the left,

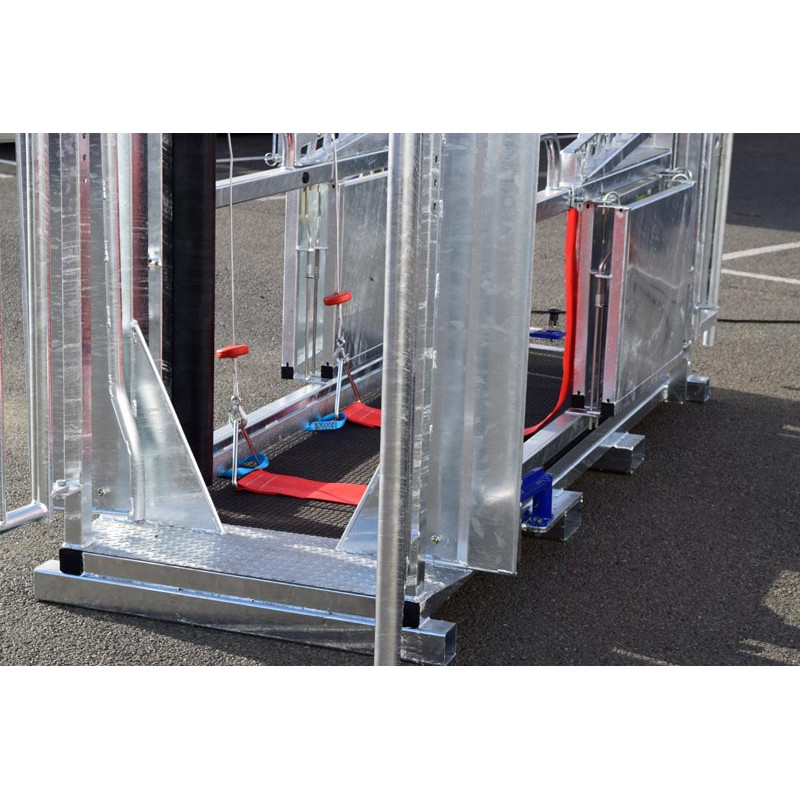

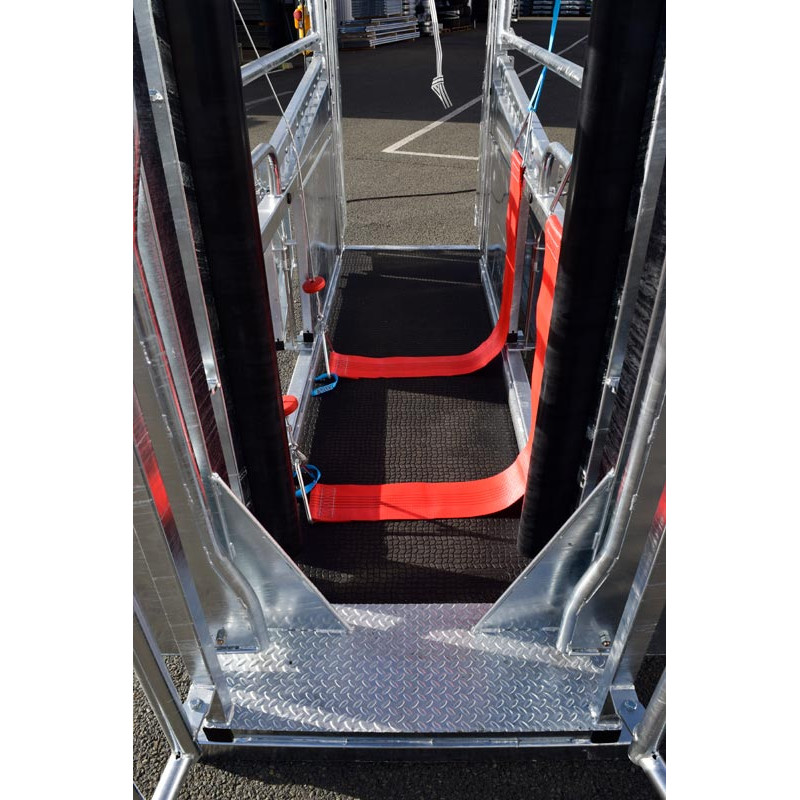

- Factory-fitted non-slip mat on the bottom to prevent slipping and to limit noise,
- Slots under the crush so it can be moved either by forklift or via an optional 3-point hitch,
- Reinforced rotating connection rods welded to a mechanical tube with grease nipples,
- Retractable control handle for double-leaved rear gate,

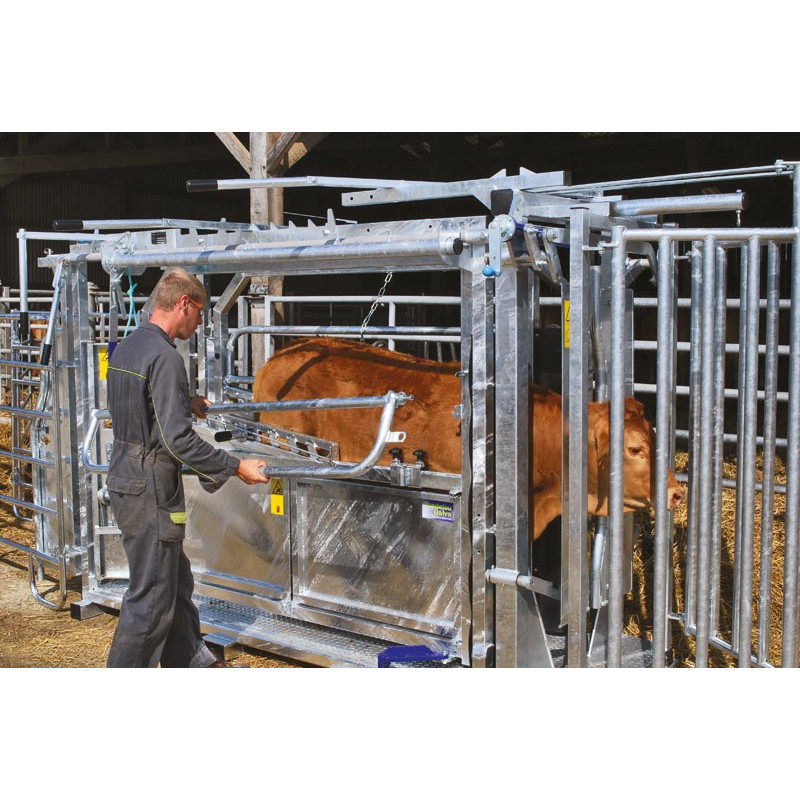

- Retractable control handle for adjusting the inside width,
- Retractable control handle for the front PCCM gate,
- Movable sheeted end panels at the rear and movable rubber at the front to go with the adjustable sides.

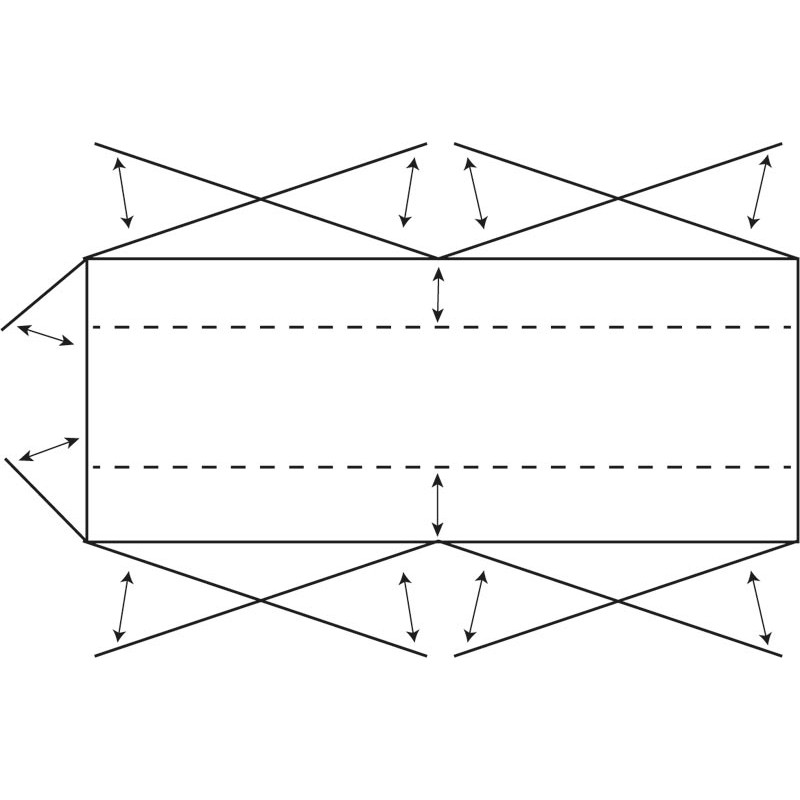

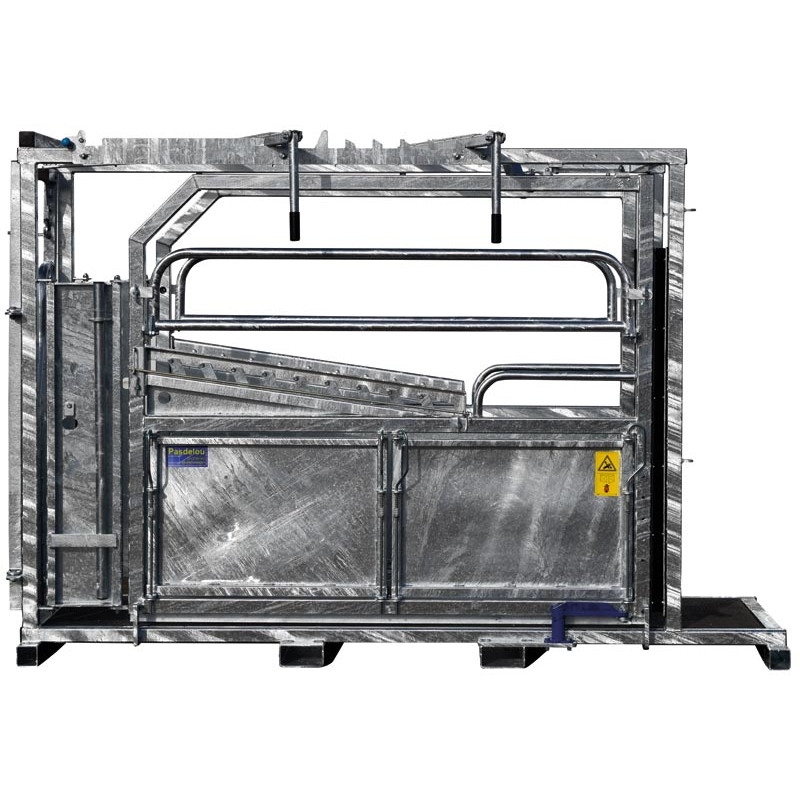

- Side panels with adjustable width made up of 4 sheet metal gates with integral and removable opening,
- Ventilated panels, removable and retractable at the top,

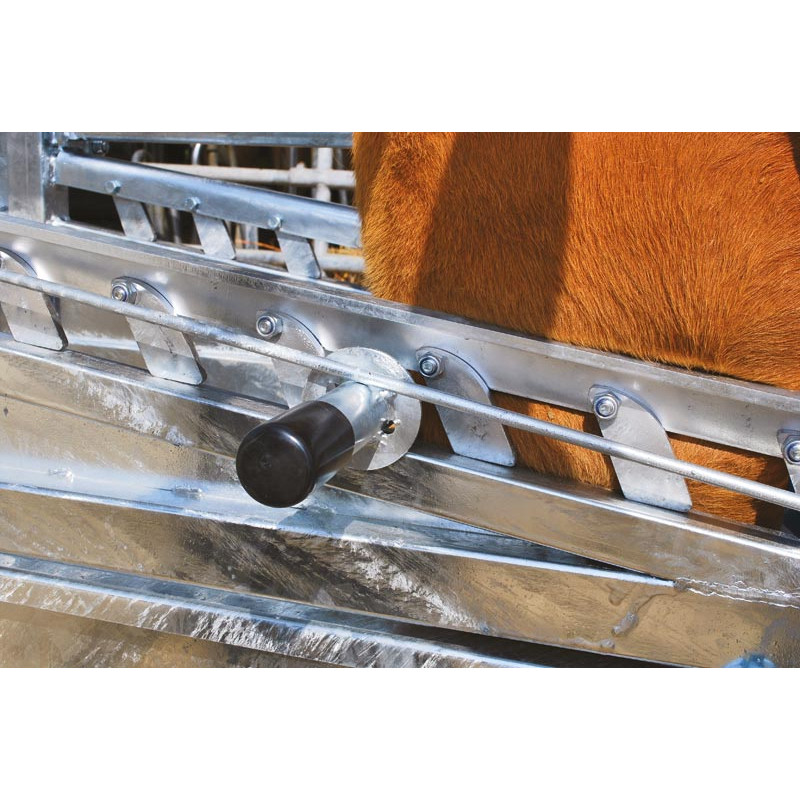

- Fully removable, inclined anti-backing system with blocking by a large bar. The system simply blocks the animals from behind depending on their size and age,
- Movable sheeted end panels at the rear and rubber at the front to go with the adjustable sides,
- Factory-fitted equipment at the rear to receive panels.

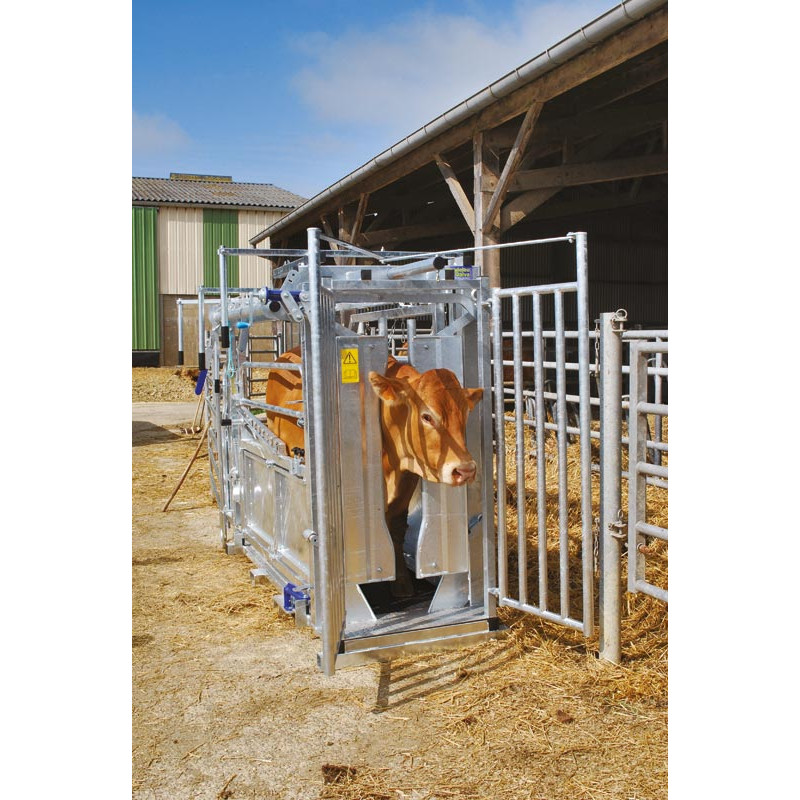

Optional PCCM headgate.
Sold without headgate, weighing kit or trimming kit.
- Height
- 2.03 m
- Length
- 3.36 m
- Width
- 1.42 m
- Sales unit
- Unit
- Packaging
- Without packaging
- Operation
- Manual
- Sides
- Adjustable width
- Inside width
- adjustable from 0.40 to 0.80 m
- Inside length
- 2.60 to 2.70 m
- Side panels
- With gates
- Side openings
- 4 sheeted gates / 2 removable and retractable leaves, sheeted at the top
- Floor
- Rubber mat
- Drafting
- 1 exit
- Access to the animal
- Complete
- Type of animal
- Beef cattle
- Installation
- Fixed and mobile crush
