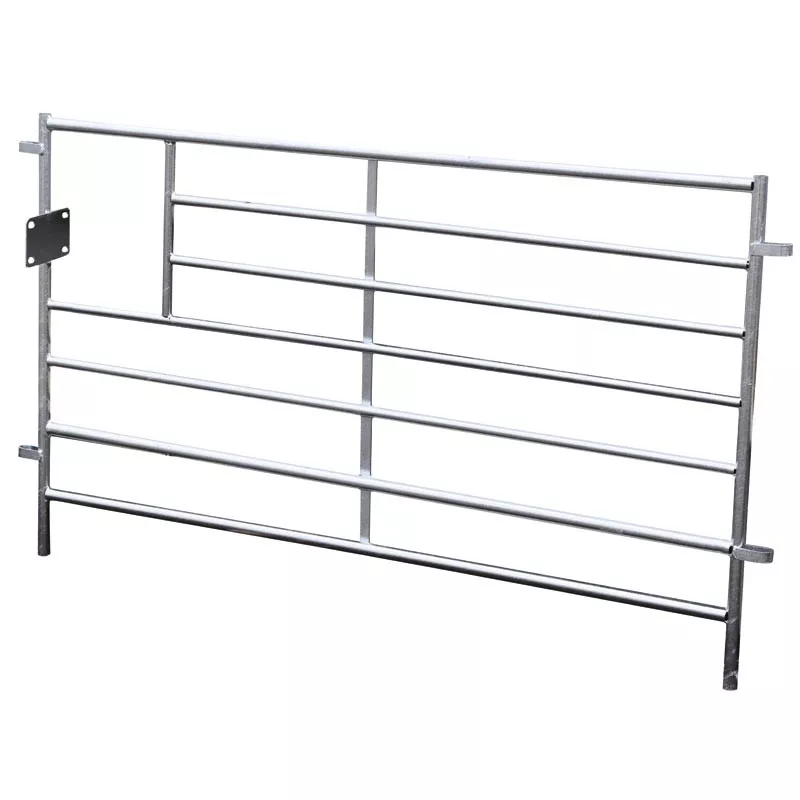

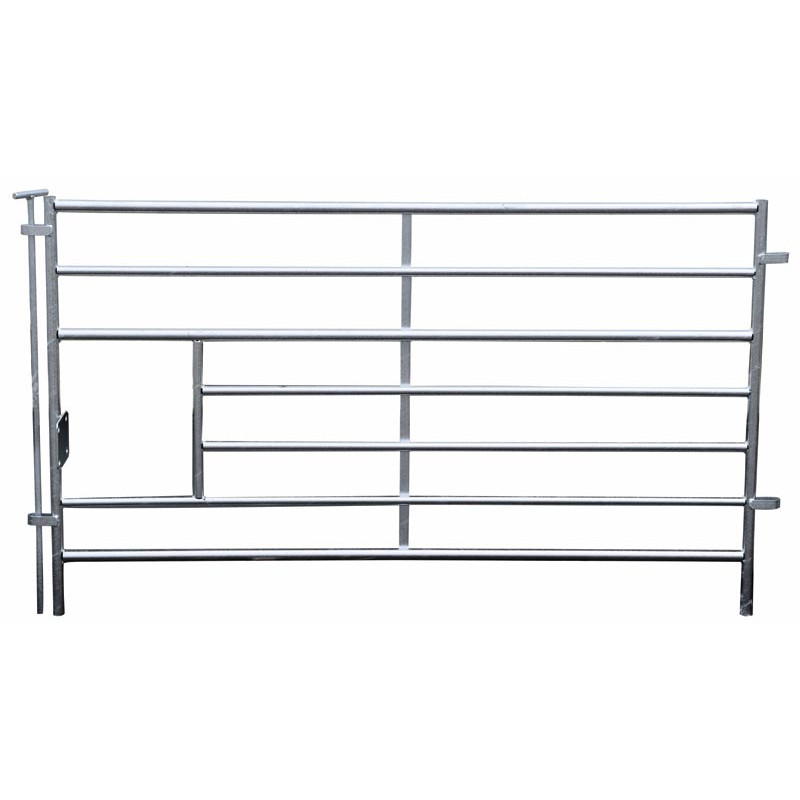

Made from galvanised steel, they are composed of either an independent fastening system with plate or a hinge pin insertion loop, depending on your requirements.

What’s included:

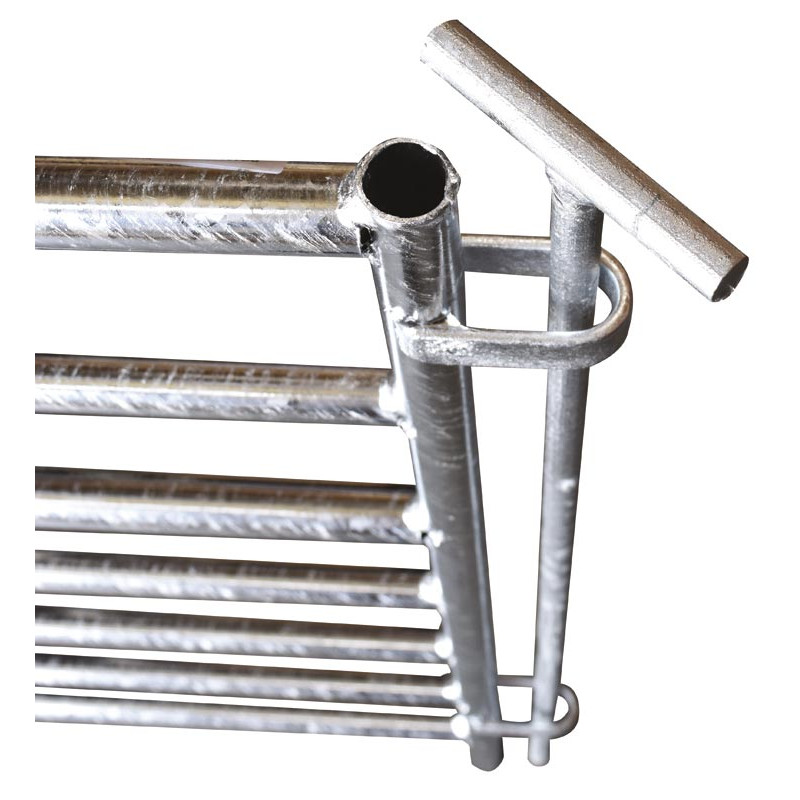

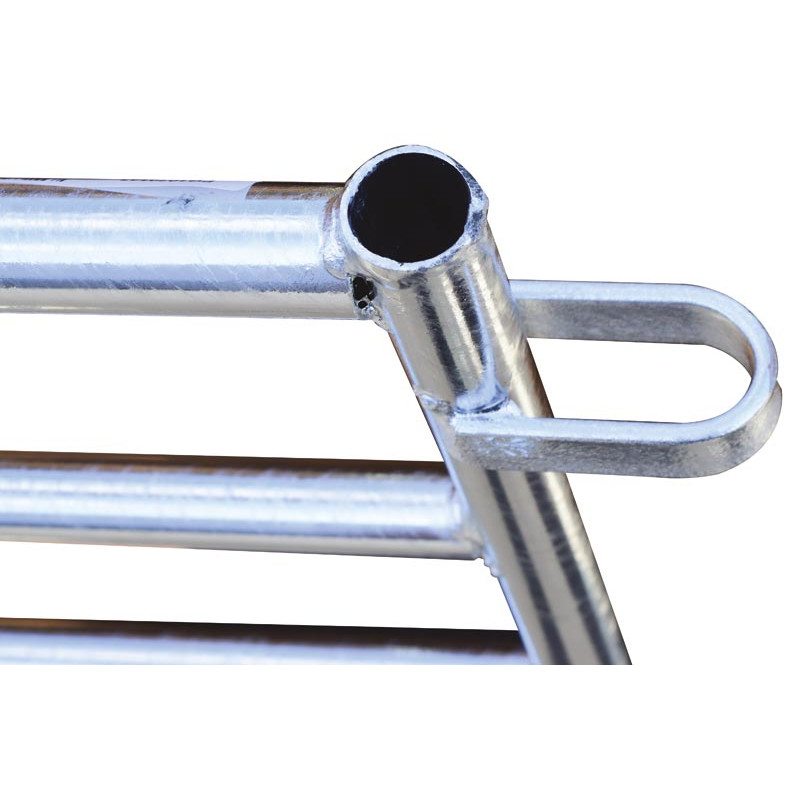

- 2 tubular uprights Ø25 mm equipped with fastening loops that can receive a hinge pin

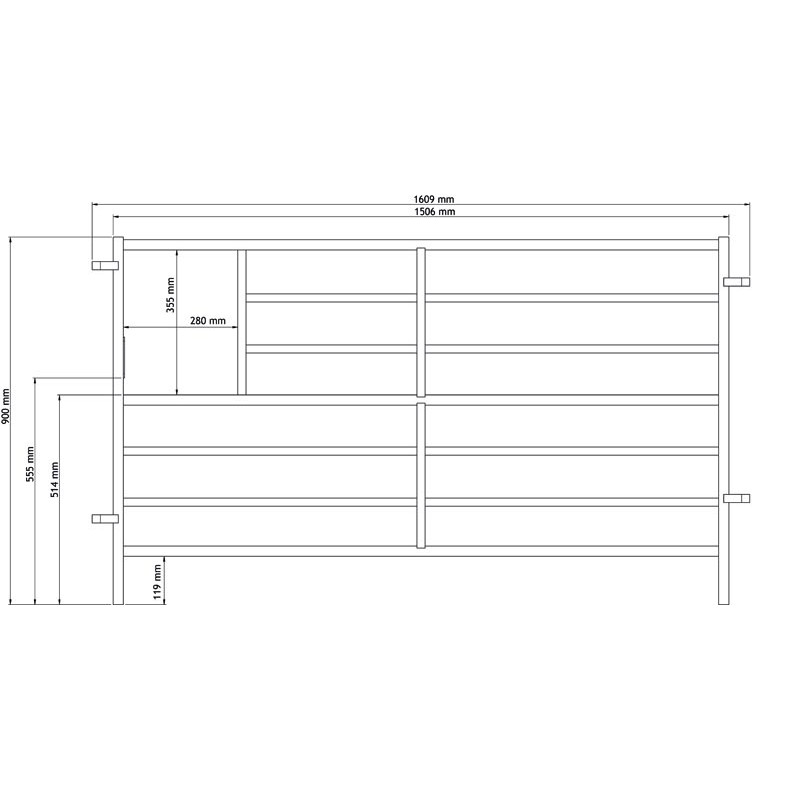

- 7 horizontal tubular bars Ø20 mm with incremental spacing starting from the top of: 190, 150, 120 ,95, 90, 90 mm. Enables the hurdles to be hooked to each other using the hinge pins, which are inserted into the fixing loops to hold the assembly together.
- 30 x 28 cm spacing for drinker fastening or opening.

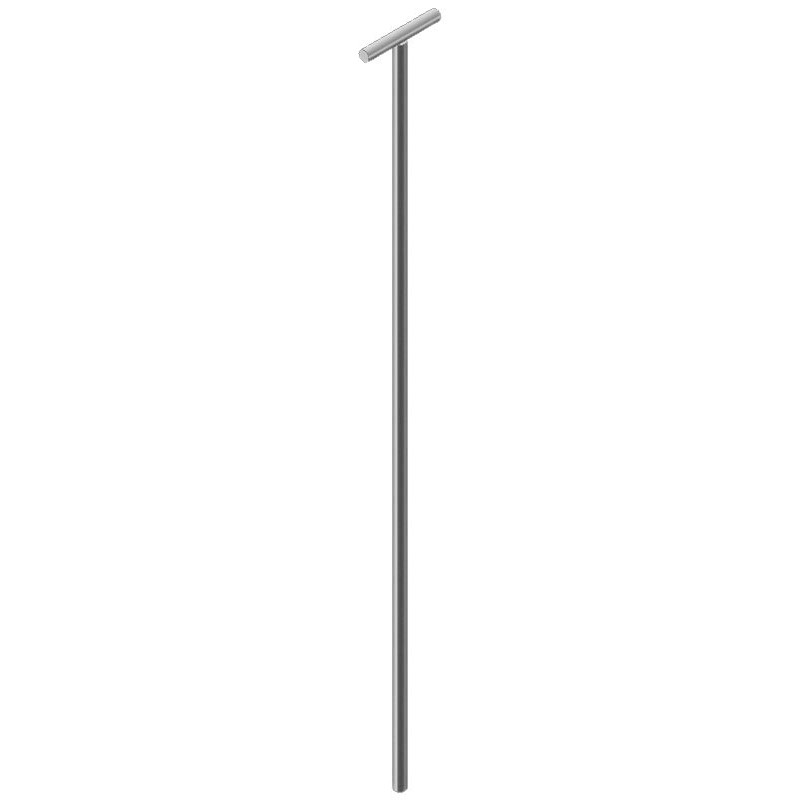

Option: hinge pin, height. 1.20 m Ø14 mm for anchoring into the ground.

Supplied with a hinge pin, height 91.4 cm Ø14 mm
Diameter
25 cm
Height
0.91 m
Length
1.50 m
Model
tube
Sales unit
Unit
Packaging
Without packaging
Material
galvanised steel
Type
Fixed
Fastening
hinge pin
