Feature-Benefits :

Lightweight and easy to transport.

> More details

Corrals or races can be built quickly. Made of galvanised steel, they consist of:

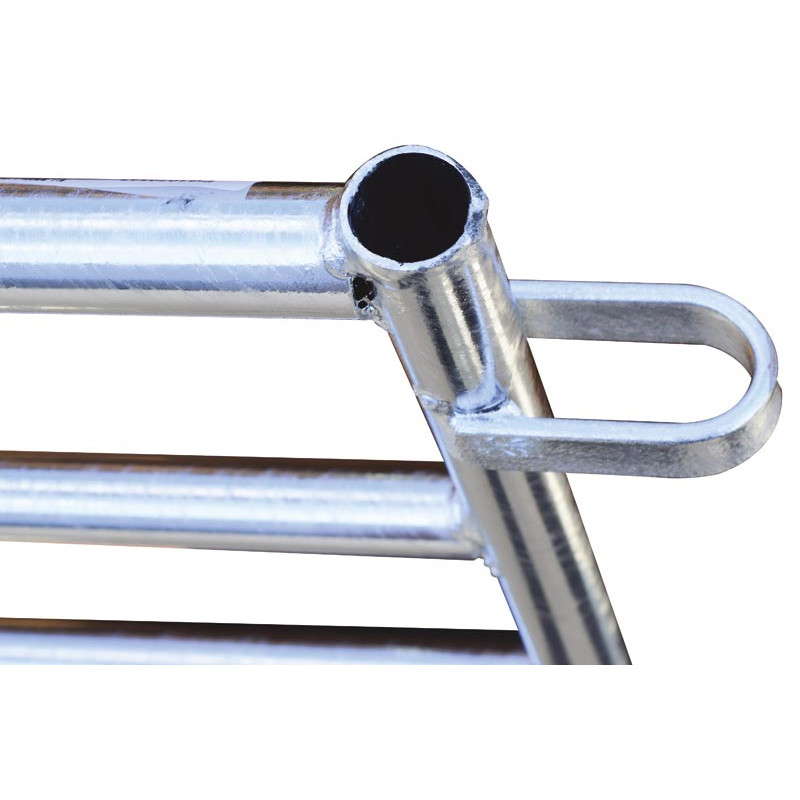

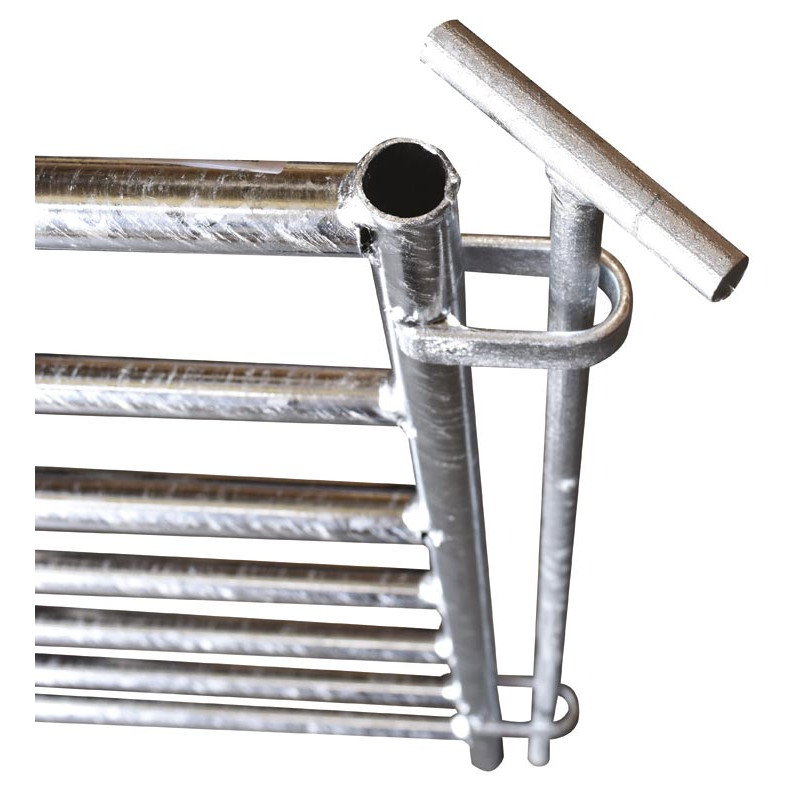

- 2 tubular uprights Ø25 mm equipped with fastening loops that can receive a hinge pin. Enables the hurdles to be hooked to each other using the hinge pins, which are inserted into the fixing loops to hold the assembly together. 1 x hinge pin, height 91.4 cm Ø14 mm.
Choice of tube or half-meshed model.

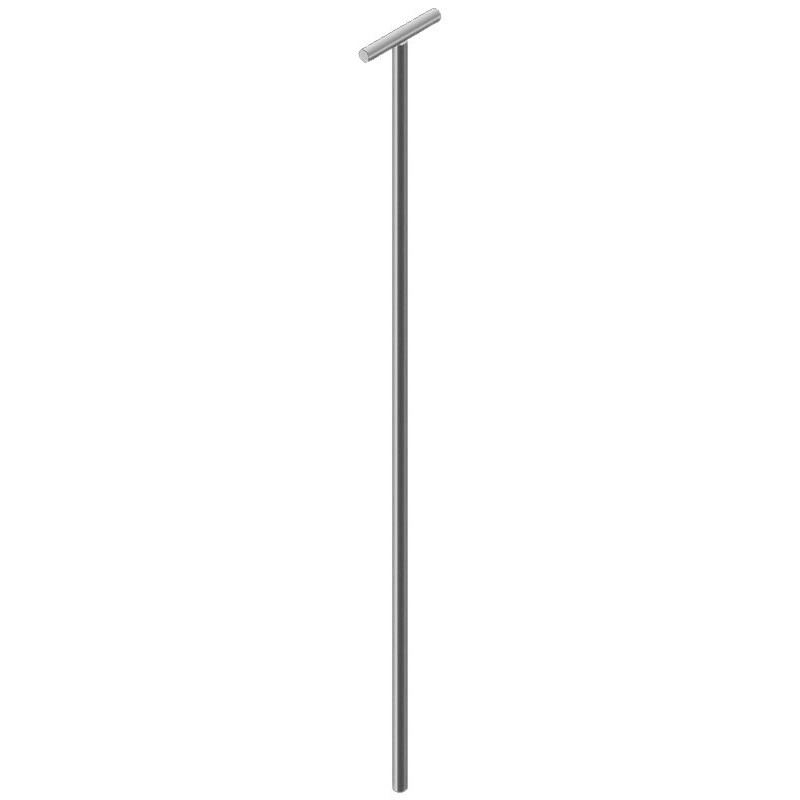

Option: hinge pin, height. 1.20 m Ø14 mm for anchoring into the ground.

What’s included:

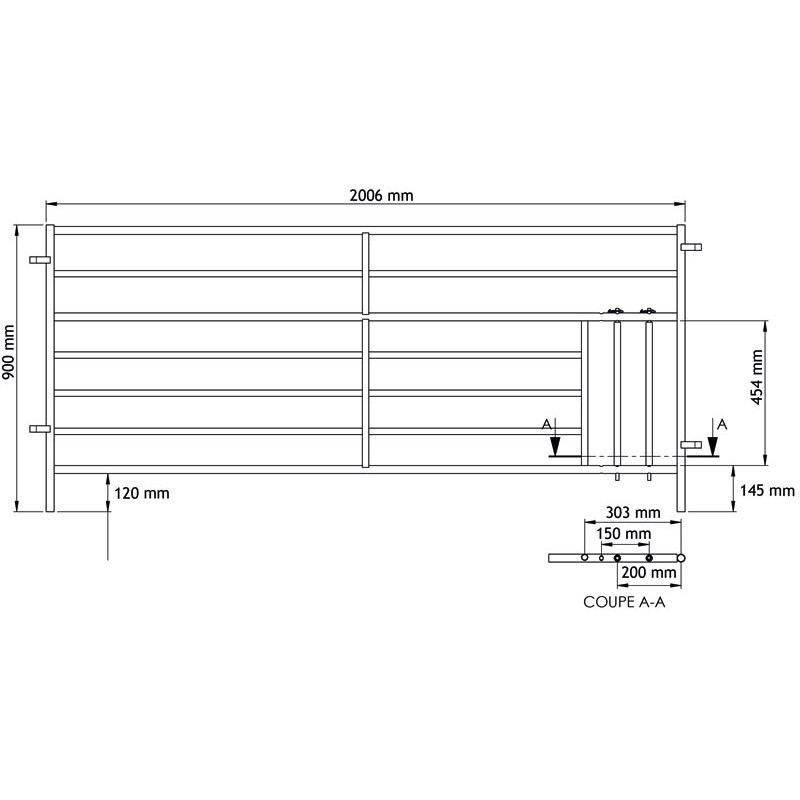

- 7 horizontal tubular bars Ø20 mm with incremental spacing, starting from the top, of: 190, 150, 120 ,95, 90, 90 mm,
- Adjustable width lamb passage with 2 bars with pin fastening.



Diameter
20 and 25 cm
Height
0.91 m
Length
2 m
Model
tube
Sales unit
Unit
Packaging
Without packaging
Material
galvanised steel
Type
Fixed
Fastening
hinge pin
