Feature-Benefits :

Designed to prevent animals from turning around.

> More details

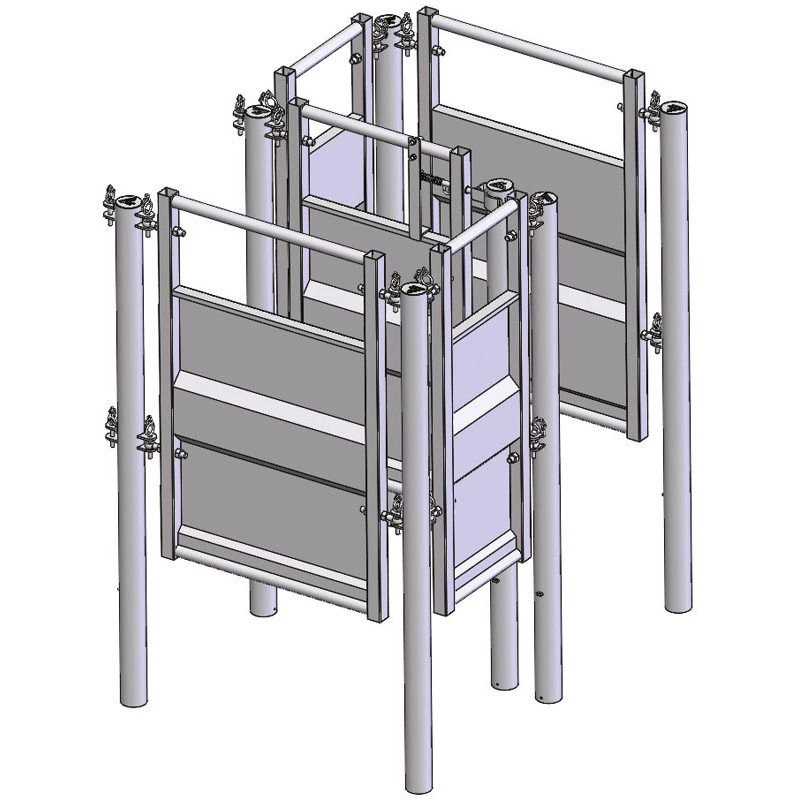

Module composition:
- 1 bare post Ø 102 mm to be embedded, height 2,13 m;
- 2 posts 1 direction Ø 102 mm to be embedded, height 2,13 m;
- 2 posts 2 directions at 90° Ø 102 mm to be embedded, height 2,13 m;
- 1 post 3 directions (face to face) Ø 102 mm to be embedded, height 2,13 m;
- 1 three-sided post Ø102 mm to be embedded, height 2,13 m;
- 2 sheeted straight panels with fixed bar, length 0.78 m x height 1.55 m, sheeted over 1.15 m;
- 1 straight sheeted panel with fixed bar, length 1 m x height 1.55 m, sheeted over 1.15 m;
- 2 sheeted straight panels with fixed bar, length 1.20 m x height 1.55 m, sheeted over 1.15 m;
- 1 spring lock kit with flange Ø 102 mm for sheeted panel;



Length
1.30 m
Width
1.76 m
Sales unit
Unit
Packaging
Palette
Material
galvanised steel
