Semi-circular module with circular forcing area and posts to be embedded

Semi-circular module with circular forcing area and posts to be embedded
Semi-circular module with circular forcing area and posts to be embedded
Semi-circular module with circular forcing area and posts to be embedded
Previous arrow_backward
Next arrow_forward
zoom_in
Semi-circular module with circular forcing area and posts to be embedded
Semi-circular module with circular forcing area and posts to be embedded
Semi-circular module with circular forcing area and posts to be embedded
Feature-Benefits :

Silent.
Safe cattle handling.
Time saving.

> More details

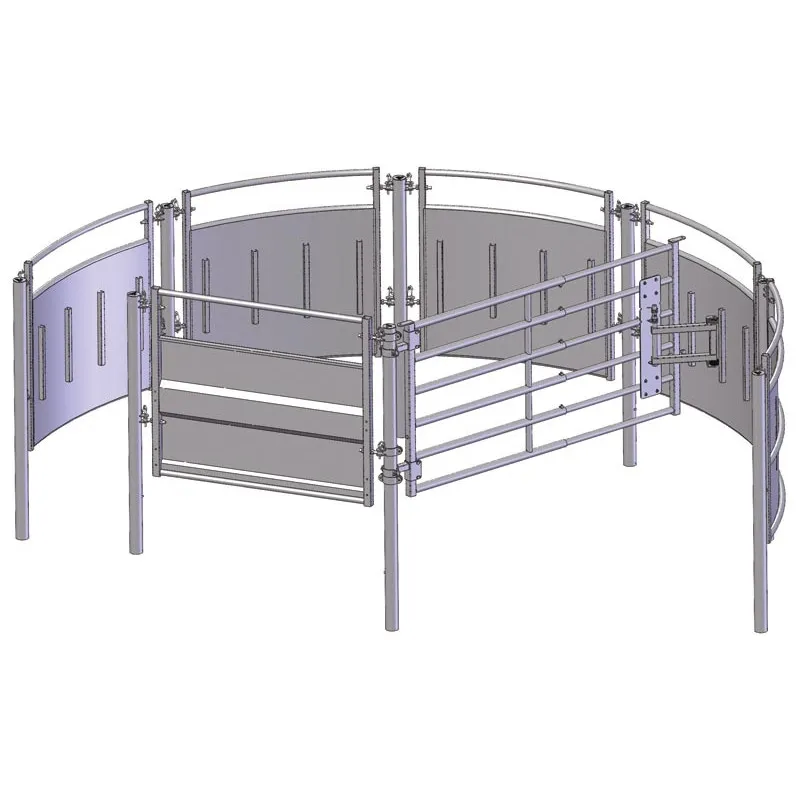

Module composition:
- 1 reinforced bare post Ø102 mm to be embedded, height 2.50 m x thickness 5 mm;
- 3 posts 1 direction Ø102 mm to be embedded, height 2.13 m x thickness 4 mm;
- 4 posts 2 directions (face to face) Ø 102 mm to be embedded, height 2.13 m x thickness 4 mm;
- 5 curved sheeted panels with anti-backing (right or left), length 2 m x height 1.55 m, sheeted over 1.15 m;
- 1 straight sheeted panel with fixed bar, length 2 m x height 1.55 m, sheeted over 1.15 m;
- 1 pair of 1 direction flanges Ø 102 mm with screws and bolts;
- 1 rotation kit with silent anti-backing system for 6-bar fence;
- 1 six-bar rear end panel, height 1.43 m x length 1.47 m;
- 1 six-bar front end panel, height 1.43 m x length 1.70 m;



Sales unit
Unit
Packaging
Palette
Material
galvanised steel
Ray
3 m
