Feature-Benefits :

2-way drafting.
Adjustable length.

> More details

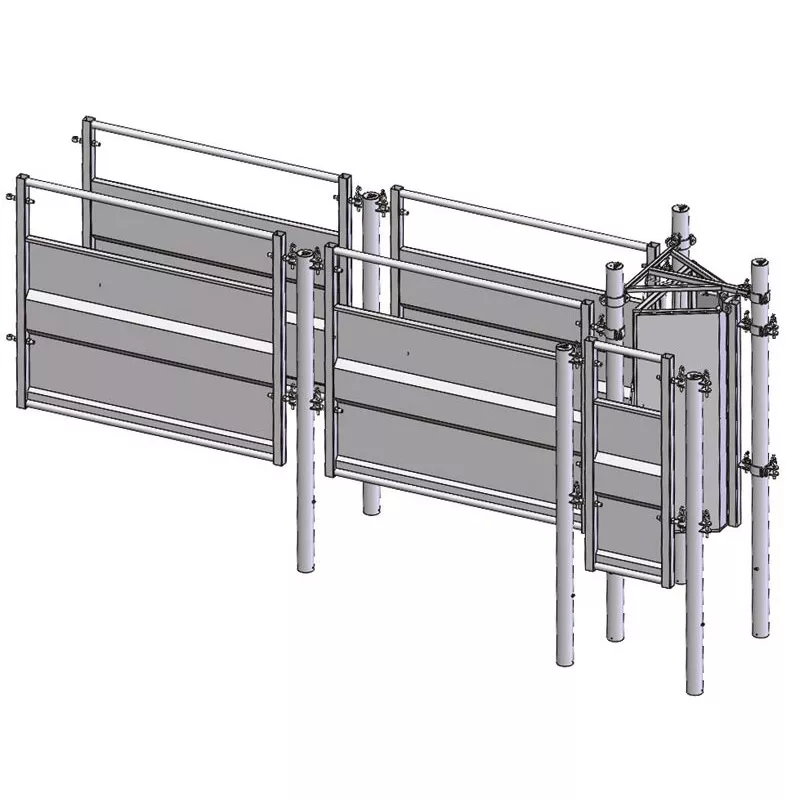

Module composition:
- 1 1-direction post Ø 102 mm to be embedded, height 2,13 m;
- 3 2-directions posts (face to face) Ø 102 mm to be embedded, height 2,13 m;
- 1 straight sheeted panel with fixed bar, length 0.78 m x height 1.55 m, sheeted over 1.15 m;
- 4 sheeted straight panels with fixed bar, length 2 m x height 1.55 m, sheeted over 1.15 m;
- 1 two-way drafting gate;
- 2 pairs of 1-direction flanges Ø 102 mm with screws and bolts.



Length
4.96 m
Width
1.35 m
Sales unit
Unit
Packaging
Palette
Material
galvanised steel
Passage
800 mm
