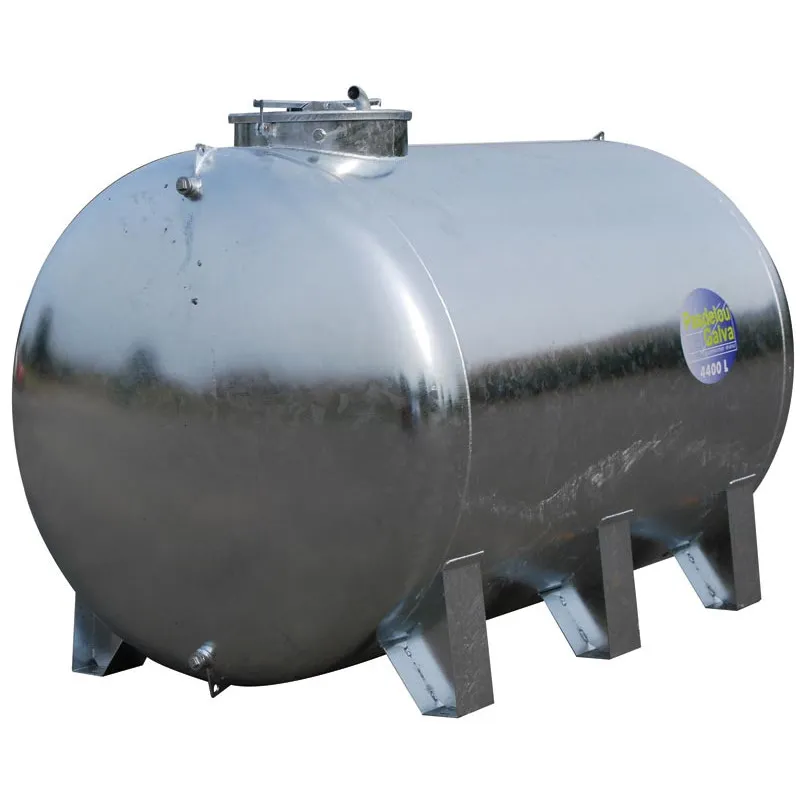

Water tanks on legs 4400 L

Tank technical features:
The hot-dip galvanising process may deform the sheet metal panels and leave in ash deposits outside and inside the tanks.
A pre-cleaning is done before the mounting at our workshop.
However it is recommended to deeply clean the tank, its accessories and options such as the valves before first use.
It is possible to find some rust points on the sheet metal panels (contact point during galvanising process).
​​​​​​​The rust points can be covered after galvanisation by a cold zinc coat (similar to a grey paint layer) which brings the same protection and quality than the hot-dip galvanising.

Monobloc design, seam welded to ensure strength
and leak-tightness.

Equipped with:

- One ‘wave-quelling’ float for 3200 and 4400 litre bowsers and two ‘wavequelling’ floats for 5200 to 8000 litre bowsers.
- Hinged cover on manhole with seal. Pre-drilled to receive optional float valve with galvanised casing.
- Vent Ø42 mm for 500 to 1100 litre models and Ø60 mm for 1500 to 8000 litre models, which also acts as a hose inlet for filling.
- Main rear outlet Ø80 mm (3" 1/8) on a plate with 4 holes, designed for attaching different valve options, and a Ø20/27 mm (3/4") threaded female outlet on the main outlet side.
- Upper and lower outlet with Ø20/27 mm (3/4") threaded female nipples for bowsers up to 2000 litres and Ø 3/42 mm (1" 1/4) for bowsers over 2000 litres.
- Wide legs with 4 mm thick reinforcing plate.
